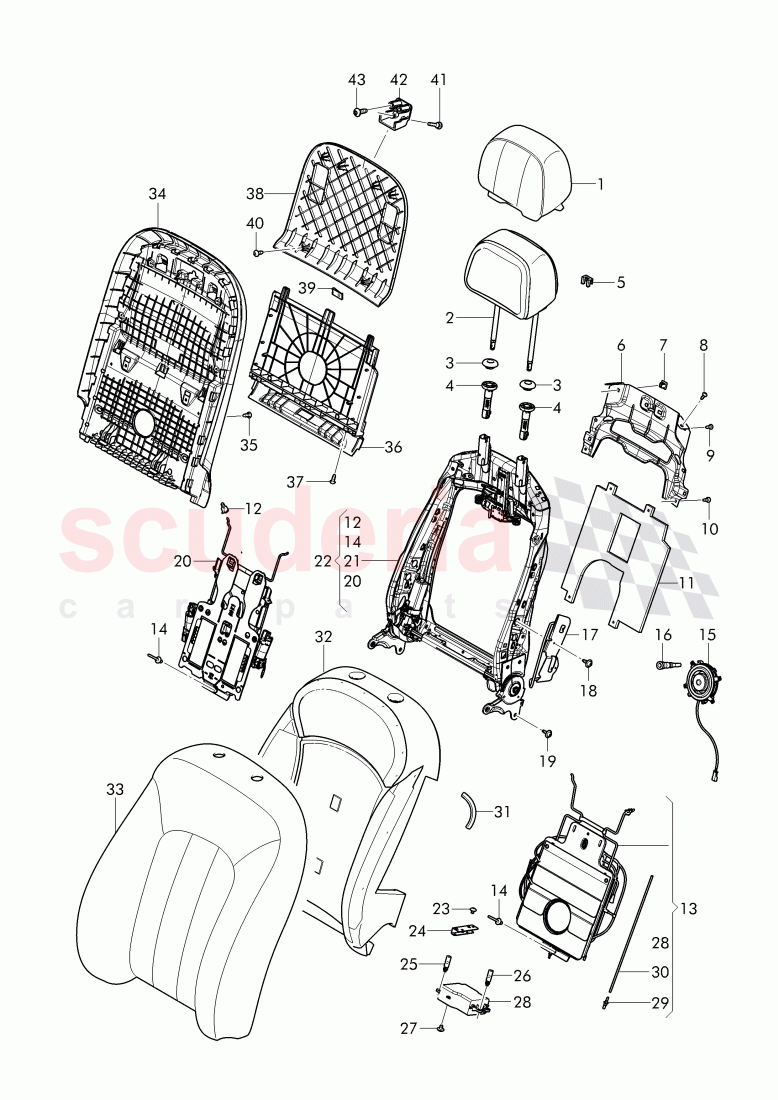

No

Kod

Parça Adı

1

3Y5881921

head restraint cover

2

3Y5881717

head restraint seat

3

3Y5881920A

cover panel guide for head restraint

4

4H0881920B

guide for head restraint

5

3Y5 881 249 A

restrictor

6

3Y5 881 507 D

retainer, backrest panel, D - 02.05.2016>>

6

3Y5 881 508 D

retainer, backrest panel, D - 02.05.2016>>

7

WHT 005 173

expanding nut

8

N90944604

Oval hexagon socket head bolt, alternatively, you can use:, D >> - 30.06.2014

40

N10447201

Hexagon socket oval head, panel bolt (combi)

10

N10621601

Hex socket oval head collared, D - 04.11.2013>>

11

3Y5 881 173 A

cover

12

3Y5881279

clamp

13

3Y5881065A

pneumatic components for seat for vehicles with massage seat and seat ventilation

14

N90511302

pop rivet

15

4G8963575

fan, D >> - 02.01.2017

16

4H0941117

Attachment element

17

3Y5 881 881

support, bolster

17

3Y5 881 882

support, bolster

18

N90729003

fillister head bolt (combi.)

19

WHT002796B

socket head bolt with multi- point inner drive, self-lock.

20

4H0881880A

Lumbar support with, adjustment motor

21

3Y5881045A

backrest frame for vehicles with massage seat and seat ventilation F 3Y-B-015 847>>

21

3Y5881046A

backrest frame for vehicles with massage seat and seat ventilation F 3Y-B-015 847>>

22

4H0881045H

frame - backrest, for vehicle with adjustable, lumbar support, F 3Y-B-015 847>>, F ZH-B-015 847>>

22

4H0881046H

frame - backrest, for vehicle with adjustable, lumbar support, F 3Y-B-015 847>>, F ZH-B-015 847>>

23

N 102 849 05

fillister hd. screw with, MULTI-POINT SOCKET HEAD, D - 07.04.2014>>

24

3Y0 861 631 A

bracket

25

4H0 882 829 A

damper

26

4H0 882 829

damper

27

N90478801

pop rivet

28

4H0 881 073 AC

air pump

29

3Y5 881 535

union

30

3Y5 881 129 A

air pipe

31

3Y5 881 587

air pipe

32

3Y5 881 551 D

plastic foam, backrest, D - 31.01.2011>>

32

3Y5 881 552 D

plastic foam, backrest, D - 31.01.2011>>

32

3Y5 881 551 G

plastic foam, backrest

32

3Y5 881 552 G

plastic foam, backrest

32

3Y5 881 521 L

plastic foam, backrest

32

3Y5 881 521 G

plastic foam, backrest

32

3Y5 881 522 L

plastic foam, backrest

32

3Y5 881 522 G

plastic foam, backrest

33

3Y5881805

backrest panel

33

3Y5881806

backrest panel

33

3Y5881805B

backrest panel

33

3Y5881806B

backrest panel

33

3Y5 881 805 L

backrest panel

33

3Y5 881 806 L

backrest panel

33

3Y5881805A

backrest panel

33

3Y5881806A

backrest panel

33

3Y5881805C

backrest panel

33

3Y5881806C

backrest panel

34

3Y5881152N

trim backrest shell

36

3Y5881770

BACKREST COVER (LEATHER) WITH, BACKREST POCKet

38

3Y5881407

backrest cover (leather)

39

N0454275

speed nut

41

3W5885529B

jounce bumper

42

3Y5 881 574 B

catch, table, D - 20.06.2011>>

43

N10415903

Oval hexagon socket head bolt, D >> - 25.07.2011
