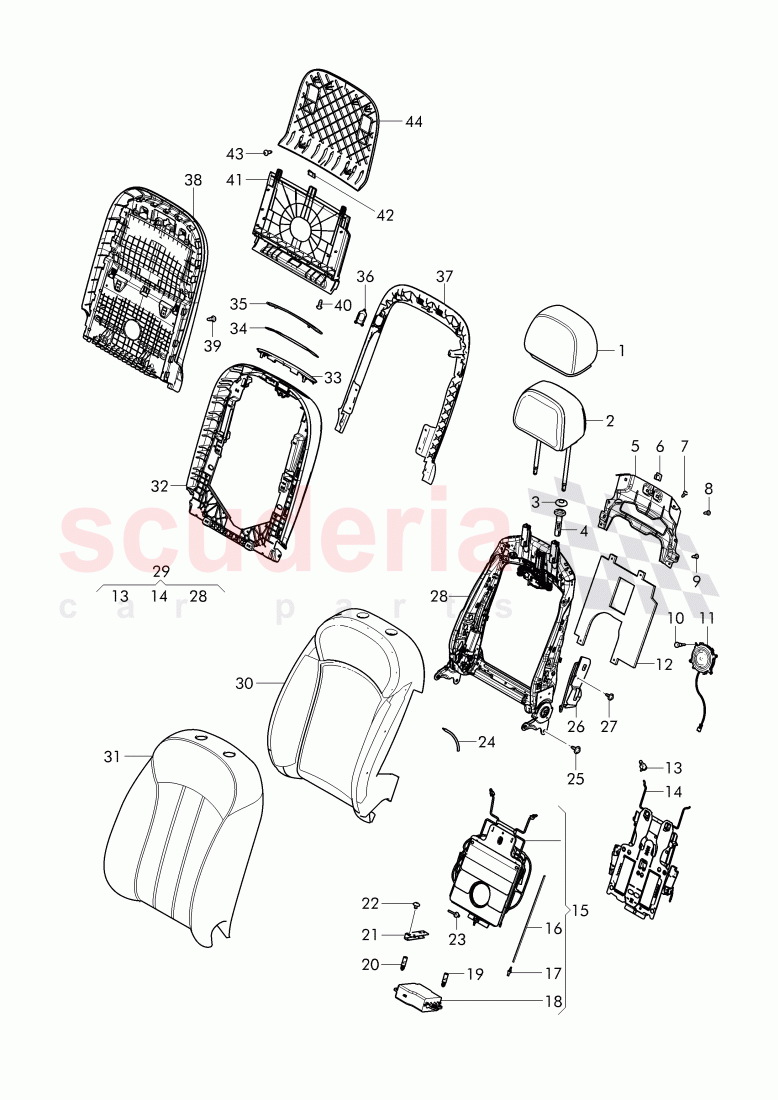

No

Kod

Parça Adı

1

3Y5 881 921 F

cover for headrest

2

3Y5881717

head restraint seat

3

3Y5881920A

cover panel guide for head restraint

4

4H0881920B

guide for head restraint

5

3Y5 881 507 D

retainer, backrest panel, D - 02.05.2016>>

5

3Y5 881 508 D

retainer, backrest panel, D - 02.05.2016>>

6

WHT 005 173

expanding nut

7

N90944604

Oval hexagon socket head bolt, alternatively, you can use:, D >> - 30.06.2014

43

N10447201

Hexagon socket oval head, panel bolt (combi)

9

N10621601

Hex socket oval head collared, D - 04.11.2013>>

10

4H0941117

Attachment element

11

4G8963575

fan, D >> - 02.01.2017

12

3Y5 881 173 A

cover

13

3Y5881279

clamp

14

4H0881880A

Lumbar support with, adjustment motor

15

3Y5881065A

pneumatic components for seat for vehicles with massage seat and seat ventilation

16

3Y5 881 129 A

air pipe

17

3Y5 881 535

union

18

4H0 881 073 AC

air pump

19

4H0 882 829

damper

20

4H0 882 829 A

damper

21

3Y0 861 631 A

bracket

22

N 102 849 05

fillister hd. screw with, MULTI-POINT SOCKET HEAD, D - 07.04.2014>>

23

N90511302

pop rivet

24

3Y5 881 587

air pipe

25

WHT002796B

socket head bolt with multi- point inner drive, self-lock.

26

3Y5 881 881

support, bolster

26

3Y5 881 882

support, bolster

27

N90729003

fillister head bolt (combi.)

28

3Y5881045A

backrest frame for vehicles with massage seat and seat ventilation F 3Y-B-015 847>>

28

3Y5881046A

backrest frame for vehicles with massage seat and seat ventilation F 3Y-B-015 847>>

29

4H0881045H

frame - backrest, for vehicle with adjustable, lumbar support, F 3Y-B-015 847>>, F ZH-B-015 847>>

29

4H0881046H

frame - backrest, for vehicle with adjustable, lumbar support, F 3Y-B-015 847>>, F ZH-B-015 847>>

30

3Y5 881 551 H

padding for backrest

30

3Y5 881 551 J

padding for backrest

30

3Y5 881 521 P

padding for backrest

30

3Y5 881 521 Q

padding for backrest

30

3Y5 881 552 H

padding for backrest

30

3Y5 881 552 J

padding for backrest

30

3Y5 881 522 P

padding for backrest

30

3Y5 881 522 Q

padding for backrest

31

3Y5 881 805 P

backrest panel

31

3Y5 881 805 Q

backrest panel

31

3Y5 881 805 R

backrest panel

31

3Y5 881 805 S

backrest panel

31

3Y5 881 805 T

backrest panel

31

3Y5 881 805 AA

backrest panel

31

3Y5 881 805 AB

backrest panel

31

3Y5 881 805 AC

backrest panel

31

3Y5 881 805 AD

backrest panel

31

3Y5 881 806 M

backrest panel

31

3Y5 881 806 N

backrest panel

31

3Y5 881 806 P

backrest panel

31

3Y5 881 806 Q

backrest panel

31

3Y5 881 806 R

backrest panel

31

3Y5 881 806 S

backrest panel

31

3Y5 881 806 T

backrest panel

31

3Y5 881 806 AA

backrest panel

31

3Y5 881 806 AB

backrest panel

32

3Y5 882 515 A

backrest shell

32

3Y5 882 516 A

backrest shell

33

3Y5 882 525 A

chrome trim, D - 28.11.2016>>

33

3Y5 882 526 A

chrome trim, D - 28.11.2016>>

34

3Y5 881 349

cover plate

34

3Y5 881 350

cover plate

35

3Y5 881 463

lining - cover

35

3Y5 881 464

lining - cover

36

3Y5 882 523

trim for switch

37

3Y5 881 334 A

backrest cover (leather)

37

3Y5 881 097 A

backrest cover (leather)

37

3Y5 881 098 A

backrest cover (leather)

38

3Y5881152N

trim backrest shell

41

3Y5881770

BACKREST COVER (LEATHER) WITH, BACKREST POCKet

42

N0454275

speed nut

44

3Y5881407

backrest cover (leather)
