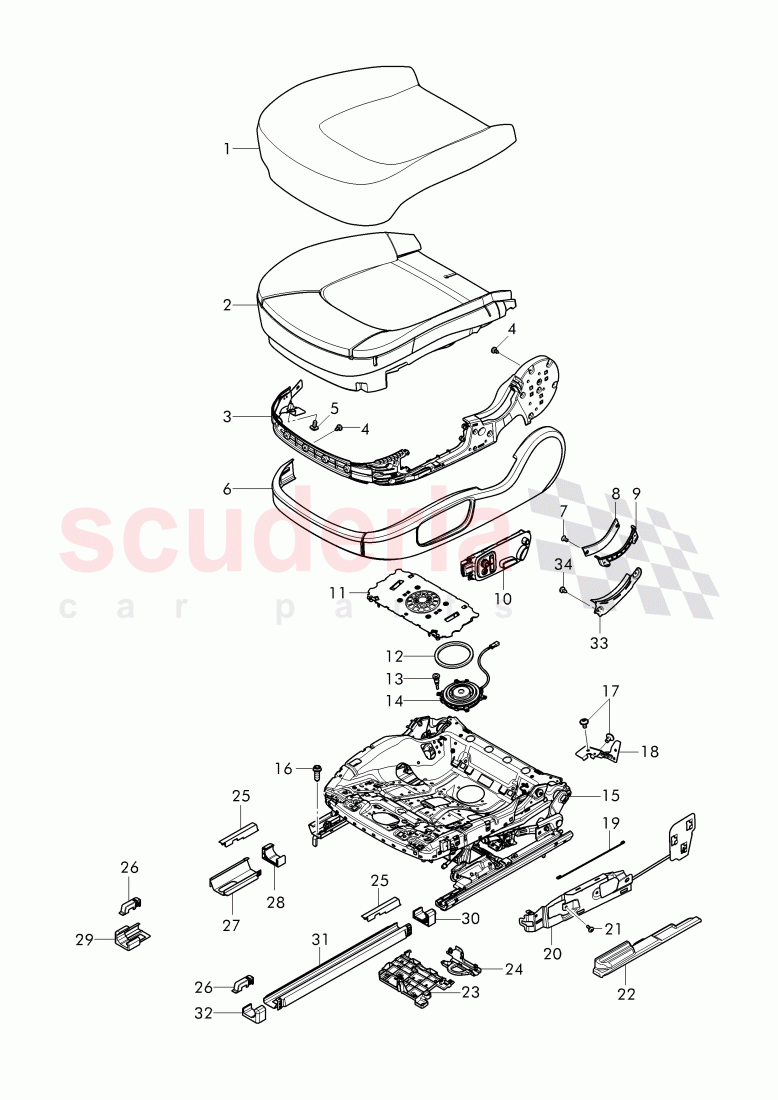

No

Kod

Parça Adı

1

3Y5881405

seat cover

1

3Y5881405A

seat cover

1

3Y5881405B

seat cover

1

3Y5881405C

seat cover

1

3Y5881406

seat cover

1

3Y5881406A

seat cover

1

3Y5881406B

seat cover

1

3Y5881406C

seat cover

2

3Y5 881 739 C

padding for seat

2

3Y5 881 740 E

padding for seat

3

3Y5 881 691 B

moulding frame, trim panel for seat frame, F >> 3Y-G-001 682, F >> ZH-G-001 682

3

3Y5 881 692 B

moulding frame, trim panel for seat frame, F >> 3Y-G-001 682, F >> ZH-G-001 682

4

N 106 568 01

tapping screw, fill. hd., F 3Y-G-001 683>>, F ZH-G-001 683>>

17

N90737101

Oval hexagon socket head bolt, F >> 3W-D-085 442, F >> ZA-D-085 442

6

3Y5 882 811 B

trim panel for seat frame

6

3Y5 882 812 B

trim panel for seat frame

7

WHT003634

countersunk panel screw

8

3Y5882661

seat belt guide

8

3Y5882662

seat belt guide

9

3Y5882641C

belt guide, F >> 3Y-G-001 682, F >> ZH-G-001 682

9

3Y5882642C

belt guide, F >> 3Y-G-001 682, F >> ZH-G-001 682

11

4H0882121

air guide channel

12

4H0965535

seal ring

13

4H0941117

Attachment element

14

4G8963575

fan, D >> - 02.01.2017

15

4H0881105E

seat frame, D >> - 27.09.2010

15

4H0 881 105 K

frame for seat, D - 13.02.2012>>

15

4H0881106E

seat frame, D >> - 27.09.2010

15

4H0 881 106 K

frame for seat, D - 13.02.2012>>

16

N90965002

socket head collared bolt with inner multipoint head

18

3Y5 880 477

bracket

18

3Y5 880 478

bracket

19

3Y0 881 380 A

wire

20

3Y5 881 547 B

bracket

20

3Y5 881 548 B

bracket

21

N10621601

Hex socket oval head collared, D - 04.11.2013>>

22

3Y0 881 099

cover for seat cushion length, adjustment

22

3Y0 881 100

cover for seat cushion length, adjustment

24

3Y0 972 135 A

holder for harness

24

3Y0 972 136 A

holder for harness

25

3Y0 881 640 A

cap for screw, seat frame, D - 11.12.2012>>

26

3Y0 881 639 A

cap for screw, seat frame, D - 11.12.2012>>

27

3Y5 867 347

cover for seat cushion length, adjustment

27

3Y5 867 348

cover for seat cushion length, adjustment

32

3Y5 881 347 E

connecting strip, D - 17.09.2012>>

32

3Y5 881 348 E

connecting strip, D - 17.09.2012>>

29

3Y5 881 345 D

connecting strip, D - 17.09.2012>>

29

3Y5 881 346 D

connecting strip, D - 17.09.2012>>

31

3Y5881085

cover for seat cushion length, adjustment

31

3Y5881086

cover for seat cushion length, adjustment
