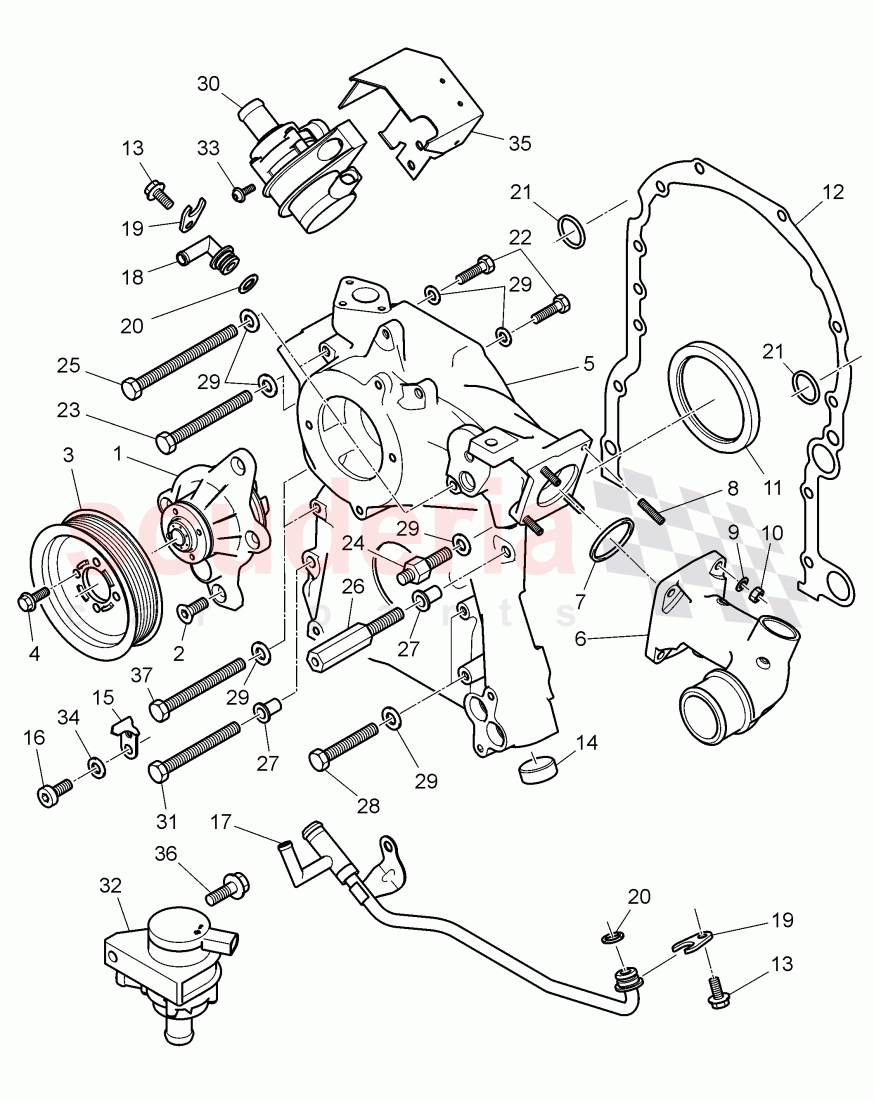

No

Kod

Parça Adı

1

07D121008B

Coolant pump with glued in sealing ring

2

N10531402

oval head countersunk bolt with multi-point socket head D - MJ 2007>>

3

07V121031A

pulley coolant pump

4

N10005306

hexagon head bolt (combi) D - MJ 2007>>

5

07V121035A

water pump housing, F >> 3Y-C-016 977, F >> ZH-C-016 977

5

07V 121 035 B

water pump housing, F 3Y-C-016 978>> 3Y-D-018 900, F ZH-C-016 978>> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 849, F ZH-E-017 831>> ZH-E-018 849

5

07V 121 035 C

water pump housing, F 3Y-E-018 850>> 3Y-E-019 941, F ZH-E-018 850>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>

6

07V 121 175 A

elbow, water pump, D - 20.03.2017>>

7

WHT002696

seal ring

8

WHT002872

stud

9

WHT002849

Washer, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 849, F ZH-E-017 831>> ZH-E-018 849

10

WHT002866

hexagon nut

11

07V105311

shaft oil seal crankshaft

12

07V121290

gasket, engine

16

WHT002753

bolt

14

07V121418

plug, shaft screw

15

07V121724A

retainer for ignition point sensor

17

07V121494

coolant pipe

18

07V121493

coolant pipe

19

07V121278B

retaining plate

20

WHT002925

seal ring

21

WHT 007 582

seal ring

22

WHT002855

bolt, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 849, F ZH-E-017 831>> ZH-E-018 849

22

N0103328

screw, hex. hd., F 3Y-E-018 850>> 3Y-E-019 941, F ZH-E-018 850>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>

23

WHT002860

bolt, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 854, F ZH-E-017 831>> ZH-E-018 854

23

N10111203

bolt, with hex. socket hd., (combi.), F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>

24

WHT002932

stud

25

WHT002779

bolt, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 854, F ZH-E-017 831>> ZH-E-018 854

25

N 100 362 03

bolt, hex. hd. (combi.), F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>

26

WHT002706

stud

27

WHT002883

dowel pin

28

WHT002859

bolt, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 854, F ZH-E-017 831>> ZH-E-018 854

28

N 107 063 01

screw, hex. hd., F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>

29

WHT002850

Washer, to be used for item:, F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>

30

07V965561

additional coolant pump

32

3W0965561

additional coolant pump

36

N10124306

Oval hexagon socket head bolt, D - 29.05.2006>>

35

07V121224

heat shield additional coolant pump
