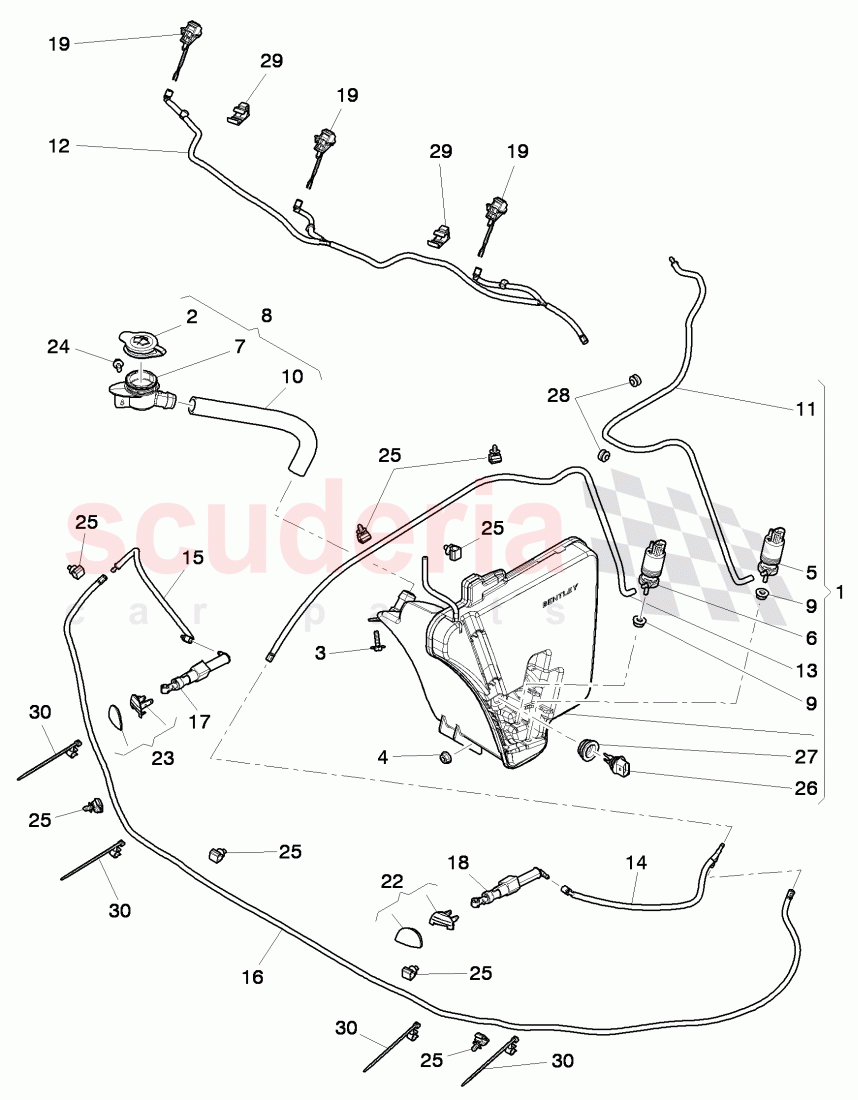

No

Kod

Parça Adı

1

3Y0955449D

fluid container, contains:

2

3W0955455B

sealing cap

4

N90167003

hexagon screw with washer

5

3Y0955651A

windscreen washer system pump

6

3Y0955681

headlight coolant pump

8

3Y0955462B

water filler neck, assembly, contains:

9

3Y0955465

grommet

10

3Y0955487A

water filler neck, tube

11

3Y0 955 964 J

windscreen washer fluid line, reservoir, windshield glass

12

3Y0955964H

coolant hose for attachment to: cover for plenum chamber

13

3Y0955970G

headlight reservoir hose

14

3Y0955970H

headlight hose

15

3Y0955970K

headlight hose

16

3Y0955970J

headlight hose

17

3Y0955978B

lift cyl. with nozzle carrier and spray nozzle

18

3Y0955979B

lift cyl. with nozzle carrier and spray nozzle

19

3D0955986A

heated spraying jet

22

3Y0807937A

pressure washer cover

23

3Y0807938A

pressure washer cover

24

N10338903

bolt, hex. hd. with shoulder, F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>

29

N90681401

corrugated pipe piece

26

7M0919376

water level switch

27

7M0919382

seal ring

28

3W0955192

grommet

30

N10685401

cable holder
