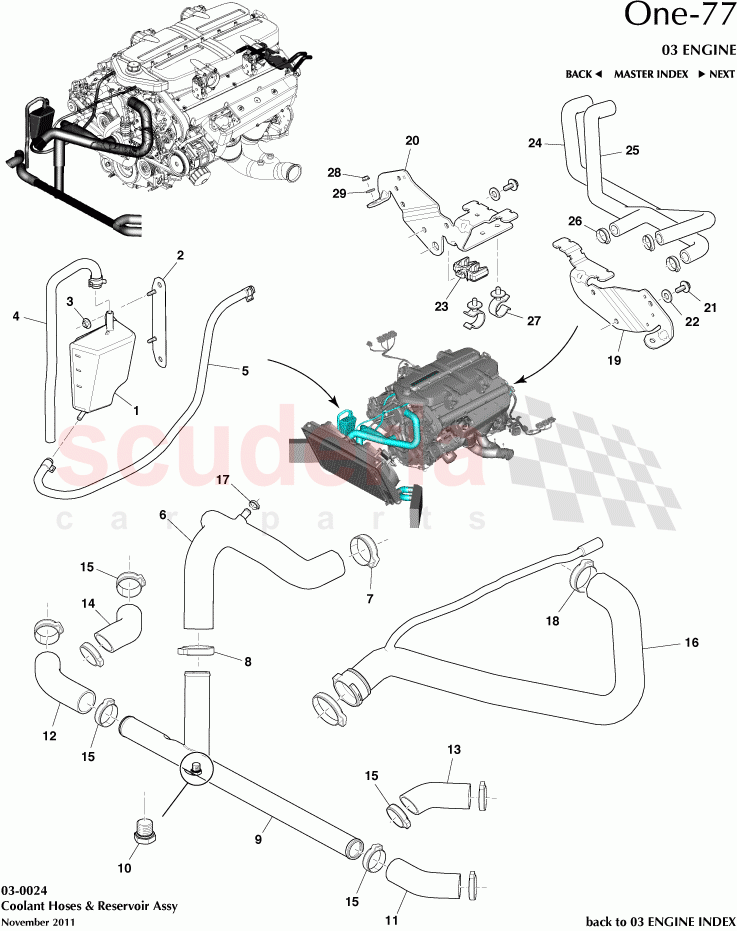

No

Kod

Parça Adı

-

AY93-6147X-BB

Bracket, Harness Carrier LH RHD

-

AY93-6147X-AB

Bracket, Harness Carrier RH RHD

1

6G33-TBD2-BA

Reservoir, Coolant Expansion

2

12023-03-8938-AB

Bracket, Coolant Expansion Reservoir

3

703612

Nut & Washer, M6, HVAC to XCB

4

4G438N029AA

Hose assy, Radiator Overflow Ext

5

12023-03-8756-AE

Hose assy, Radiator Supply Tank

6

12023-03-8044-AG

Hose, Bottom, Water Pump to Radiator

18

12023-03-7092-AA

Clamp, Oetiker 56mm

8

12023-03-7104-AA

Clamp, Oetiker 57.5mm

9

12023-03-8080-AL

Pipe, Crossover, Side Radiator to Water Pump

10

12023-03-8716-AA

Plug, Port

11

12023-03-8076-AD

Pipe, Side Radiator Connecting LH

12

12023-03-8077-AA

Pipe, Side Radiator Connecting RH

13

12023-03-8078-AE

Pipe, Side Radiator to Main Pipe LH

14

12023-03-8079-AE

Pipe, Side Radiator to Main Pipe RH

15

12023-03-7100-AA

Clamp, Oetiker 50mm

16

12023-03-8958-AC

TOP HOSE ASSEMBLY

17

12023-03-7082-AA

Clamp, Oetiker 21mm

19

AY93-6147X-CA

Bracket, Harness Carrier LH LHD

20

AY93-6147X-DA

Bracket, Harness Carrier RH LHD

21

703151

Screw M6x16 Washer Hex HD Chrome Free

22

PR6125

Washer

23

4G43-9F911-AA

Clip, 2 way Raymond

24

AY93-18D359-AA

Hose assy, Heater Outlet LHD

25

AY93-18D334-AA

Hose assy, Heater Inlet LHD

26

699545

HOSE CLAMP OETIKER REF: 025.6 - 706R

27

701570

Clip, Swivel 20-24.5mm

28

PP1340

Nut

29

PP8003

Washer
