No

Kod

Parça Adı

-

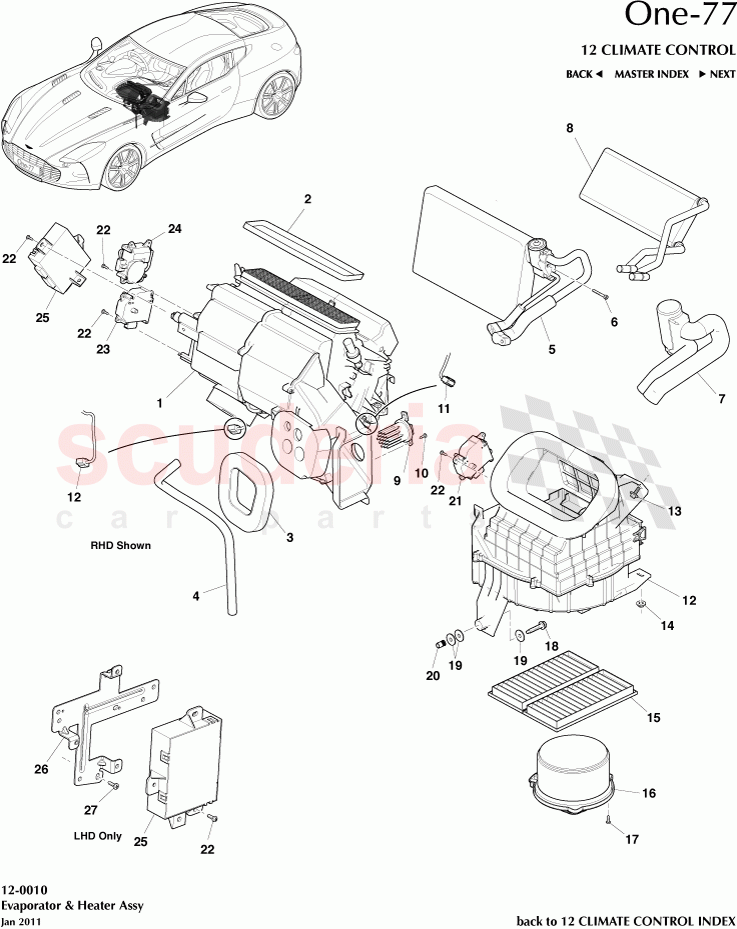

6G33-18N407-AA

EVAPORATOR & HEATER ASSY AIRCON LHD

-

703265

Screw, M6 x 16, Hex Flange Head

-

12023-03-8678-AB

Drain Tube, condensation, LHD

-

4G43-18693-AA

Sealing, Heater Core Tube to Heater Case

-

4G4318C676AA

Sealing, heater core tube to heater case, LHD

-

4G43-18D671-AA

Core & Tube Assy, heater, LHD

-

4G43-19925-AB

Blower Assy, LHD

-

4G43-19F613-AA

Motor and Fan Assy A/C, LHD

-

4G43-18A251-AA

Servo Assy, A/C Heater Fresh/Recirculate Air LHD

-

4G43-18D675-AA

Servo Assy, A/C Heater Air Mix, LHD

-

4G43-18E247-AA

Servo Assy, A/C Heater Mode, LHD

1

6G33-18N407-BA

EVAPORATOR & HEATER ASSY AIRCON RHD

2

4G43-19N574-AA

Seal, Vent Air Duct

3

4G43-19D692-AA

Seal, A/C Evaporator Tub Outer

4

12023-03-8680-AB

Drain Tube, condensation, RHD

5

4G43-19850-AA

Evaporator Assy A/C, RHD

6

4G43-ALR8679-AA

Screw, M5 x 40, Hex Socket

7

4G43-18D669-AA

Sealing, Heater Core, LHD

8

4G4318A271AA

Core & Tube Assy, heater, RHD

9

4G43-19F615-AA

Transistor, Power A/C

27

692785

SCREW M4 x 16 POSI PAN HEAD ZINC PLATED

11

4G43-19F598-AA

Sensor A/C Evaporator Temperature

12

4G43-19924-BB

Blower Assy, RHD

13

703151

Screw M6x16 Washer Hex HD Chrome Free

14

703612

Nut & Washer, M6, HVAC to XCB

15

4G43-13ZE1-AA-PK

Pollen and odour filter, (pack of 2)

16

4G43-19F612-AA

Motor and Fan Assy A/C, RHD

17

4G43-N104301-AA

SCREW M5 x 16 HX SPCL

18

703745

SCREW-M8x35 FLG 8.8

19

703137

Washer, M8, HVAC to bracket

20

6G33-58762-AA

RIVNUT M8 LOW PROFILE 0.8 3MM ZN/N

21

4G43-18A250-AA

Servo Assy, A/C Heater Fresh/Recirculate Air RHD

23

4G43-18D674-AA

Servo Assy, A/C Heater Air Mix, RHD

24

4G43-18E246-AA

Servo Assy, A/C Heater Mode, RHD

25

4G4314F164AA

Control Assy, A/C & heater temp

26

4G43121205AA

Bracket, ECU mounting, LHD Only
