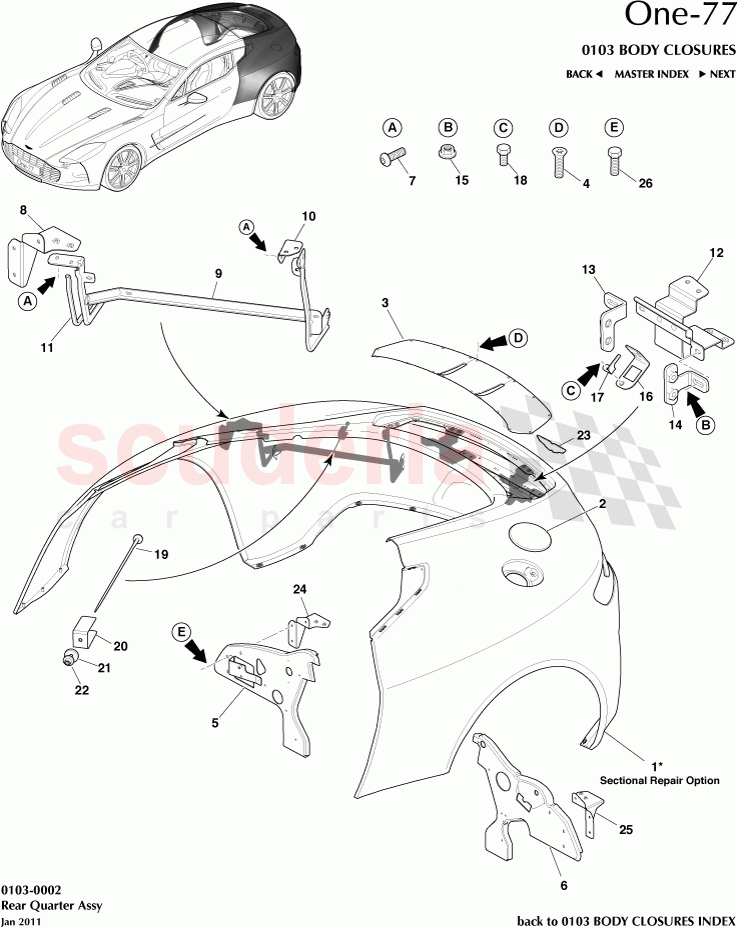

No

Kod

Parça Adı

-

DBY00407-A

Bracket, Tail Light to Clam Support, LH

-

DBYA02039-D

Bracket, Outer LH, Tail Lamp

-

DBYA02037-C

Bracket, Inner LH, Tail Lamp

-

DBYA02036-C

Bracket, RH, CHMSL

-

12023-03-7444-AA

Loadspreader, Rear Light, LH

1

DBYA02000-N

Clam Assy, Rear

2

DBY00208-B

Door, fuel filler opening

3

12023-03-7022-AA

Tray Assy, Rear Wing

4

6G33-503967-AA

Screw, M5 x 16, Csk Hd

5

DBYA02014-F

Panel Assy, Rear Clam Support, RH

6

DBYA02013-G

Panel Assy, Rear Clam Support, LH

7

703151

Screw M6x16 Washer Hex HD Chrome Free

8

DBY00408-A

Bracket, Tail Light to Clam Support, RH

9

DBYA02040-D

Bracket, Outer RH, Tail Lamp

10

DBYA02038-C

Bracket, Inner RH, Tail Lamp

11

DAC4027-15-12

Strip, Protection

12

DBYA02035-C

Bracket, LH, CHMSL

13

DBYA02029-A

Bracket, Inner Support to Lamp, LH

14

DBYA02031-A

Bracket, Outer Support to Lamp, LH

15

702295

Nut, M5, Hex Flange Head

16

DBYA02054-A

Bracket, Rear Camera Mounting

17

DBY00376-B

Bracket, Rear Camera

18

707588

BOLT M5 x 10 FLG HD CHROME FREE

19

12023-03-7508-AA

Tie, Rear lamp Retainer

20

12023-03-7445-AA

Loadspreader, Rear Light, RH

21

12023-03-7510-AA

Washer, Rear lamp Retainer

22

12023-03-7512-AA

Nut, Rear lamp Retainer

23

AY93-407A74-AA

Badge, Aston Martin

24

DBYA02058

Support Mount, Tail Light to Clam RH

25

DBYA02057

Support Mount, Tail Light to Clam LH

26

HY53-E804349-AA

M6 X 14 SCREW HEX HD
