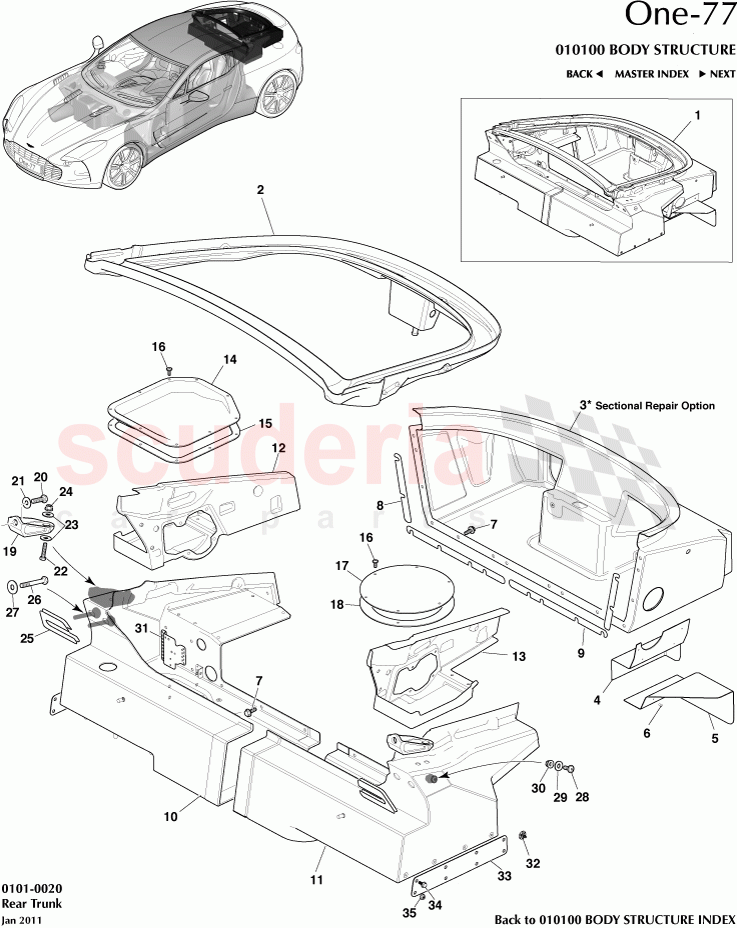

No

Kod

Parça Adı

1

12023-06-1360-AC

Rear Trunk Bonded Assy

2

12023-06-1022-AF

Trough, Rear Lift Glass

3

12023-06-1364-AB

Trunk Tub Rear Assy

4

12023-06-1378-AD

Bracket A, Fuel Filler Protection

5

12023-06-1376-AG

Bracket B, Fuel Filler Protection

34

12023-09-6024-AA

Screw, M6 x 1.0 x 16 Hex Head Flange

8

12023-06-1278-AC

Shim, Side, Rear Trunk Tub to Damper Tray

9

12023-06-1280-AC

Shim, Centre, Rear Trunk Tub to Damper Tray

10

12023-06-1384-AE

Trunk Tub Assy, Front RH

11

12023-06-1330-AK

Trunk Tub Assy, Front LH

12

12023-06-1233-AJ

Panel. Rear Speaker, RH

13

12023-06-1232-AJ

Panel. Rear Speaker, LH

14

12023-06-1340-AA

Cover Assy, Fuel Tank Access RH

15

12023-06-1316-AA

Seal Pad, Fuel Tank Access RH

16

12023-09-6042-AA

Screw, M6-1.00 x 16 Flange BHCS

17

12023-06-1276-AB

Cover, Fuel Tank Access LH

18

12023-06-1314-AB

Seal Pad, Fuel Tank Access LH

19

12023-06-1290-AA

Bracket, Upper, Trunk Tub Anchor

20

04113-100-035

Screw, M10 x 1.5 x 35, Hex Head

27

12023-09-6104-AA

Washer, Flat

22

12023-09-6012-AA

Screw, M8 x 1.25 x 35 Hex Head

30

12023-09-6086-AA

Nut, M8 Hex Flanged

25

12023-06-1294-AA

Shim, Trunk Tub Front to Main Tub B-Node

26

12023-09-6016-AA

Screw, M10 x 1.5 x 75 Hex head

28

12023-09-6052-AA

Screw, M8-1.25 x 25 Flange BHCS

29

12023-09-60026-AA

Washer, Flat

31

12023-03-7004-AB

Bracket, Ride Height RH

32

M1/B23-M5x12

Stud, Big Head Bonding, M5-1.0 x 12

33

12023-06-1240-AD

Cleat, Rear Trunk Tub, front to rear

35

12023-09-6084-AA

Nut, M6
