No

Kod

Parça Adı

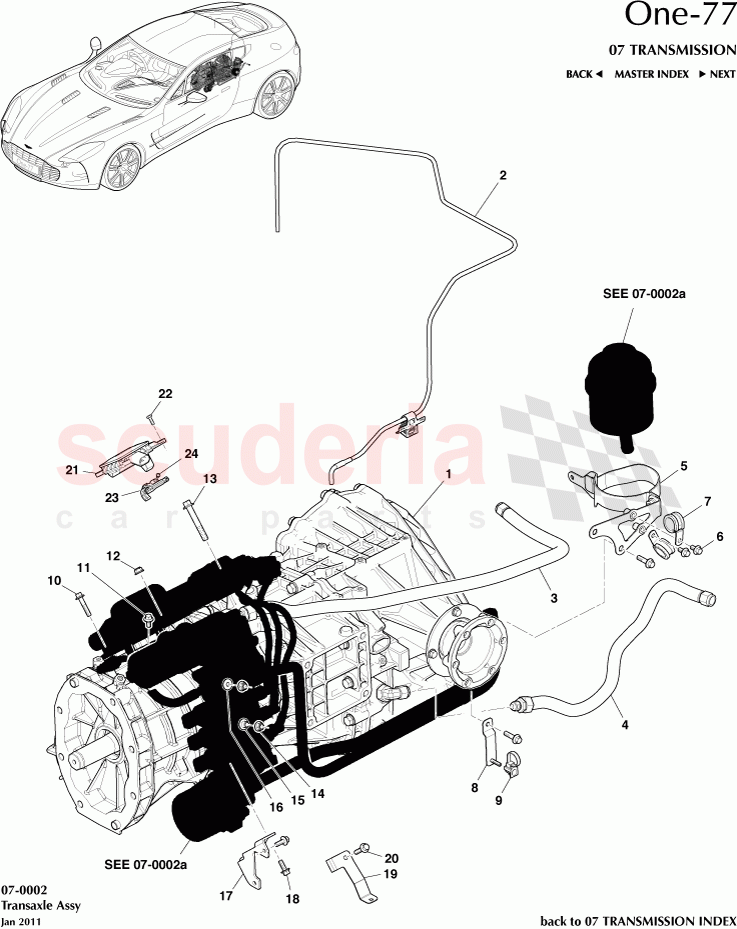

1

AY93-7002-AA

Transaxle assy

2

12023-03-8654-AB

Breather assy, Transaxle

3

12023-03-8572-AE

Pipe, Transaxle Cooler

4

12023-03-8574-AE

Pipe, Transaxle Cooler

5

12023-03-8356-AC

Bracket, ASM Resevoir

6

702535

Screw M6x12 hex flg hd

8

12023-03-8576-AD

Bracket, ASM Pipe

9

8D33-180107-D445

Retainer, Hellerman 20mm

10

703199

Bolt M6x30 HEX FLG Chrome Free

11

700606

Screw, M6 x 12, Hex Flange Head

14

703169

NUT - M6 HEX FLANGE CHROME FREE

13

703193

BOLT M8 x 55 GRD 8 FLANGE HEX HEAD CHROME FREE

15

6G33-7J039-BA

ISOLATOR - TRANS SHIFT CONTROL MOUNTING

16

6G33-7J039-AA

ISOLATOR - TRANS SHIFT CONTROL MOUNTING

17

6G33-7L564-BB

ASM HYDRAULIC PUMP BRACKET

18

703265

Screw, M6 x 16, Hex Flange Head

19

6G33-7L564-AC

ASM HYDRAULIC PUMP BRACKET

20

703025

Screw, M6 x 25, Hex Flange Head

21

6G33-7J269-AC

SNS ASSEMBLY- TRANSMISSION ACTUATOR PSN

22

702959

SCREW M4x12 PAN HEAD 6 LOBE TORX

23

6G33-7J282-AC

MAGNET ASSY - TRANMISSION ACTUATOR POSN

24

6G33505066AC

Screw, M3 x 6, button head
