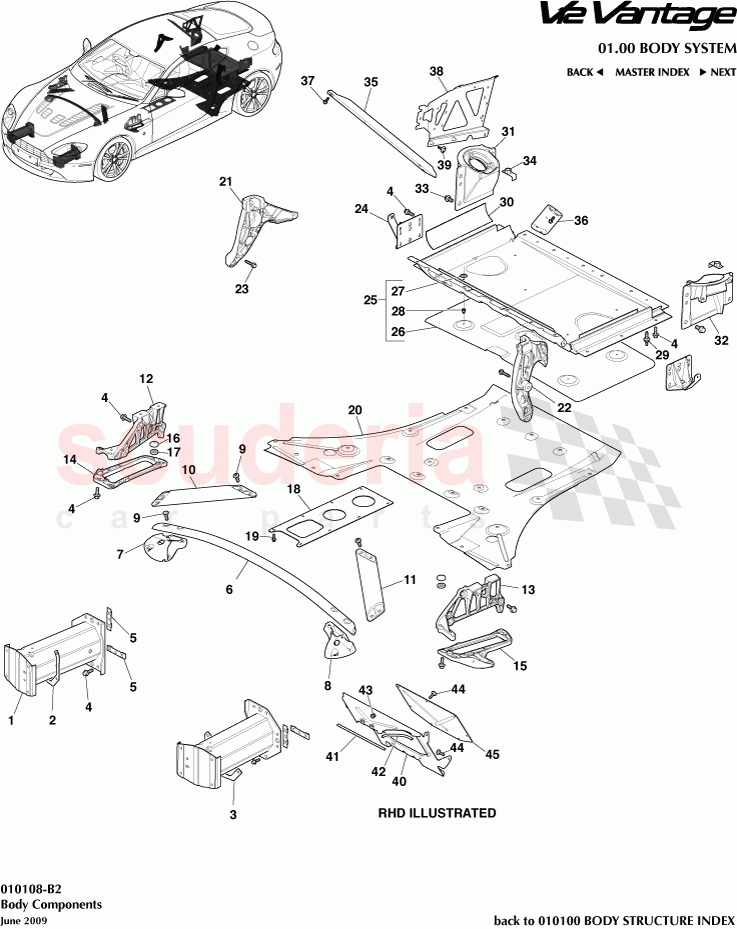

No

Kod

Parça Adı

1

BD23-71470-AC

NUTPLATE FRT CRSH RH

2

6G33-6367912-AB

Nutplate Assy, Crush Can, Lower, RH

3

6G33-6367913-AB

Nutplate Assy, Crush Can, Lower, LH

4

703120

Screw M8-1.25-90 Hex Skt Hd Shoulder

5

AD23-71470-AA

NUTPLATE FRONT CRASH STRUCTURE INNER M8

6

AD23-108A75-AA

Brace, Front Cross

7

4G43-108A86-CA

Bracket, Front Cross Brace, RH

8

4G43-108A87-CA

Bracket, Front Cross Brace, LH

9

702209

Bolt, M10 x 25, Torque Drive

11

4G43-20-11136

REINF BDY FRT C/BARS

12

6G33-16798-BA

BRACKET HOOD HINGE SUPPORT RIGHT HAND

13

6G33-16799-BA

BRACKET HOOD HINGE SUPPORT LEFT HAND

14

6G33-5340-BA

Bracket, ECU Mounting, RH

15

6G33-5341-BA

Bracket, ECU Mounting, LH

16

4G43-061B70-AA

CAP DUST COVER

17

4G43-16740-AA

PAD - HOOD ON COWL

18

AD23-111K37-AA

REINF CENTRE TUNNEL

19

703203

Screw M6 x 20 Heex Flange 8 Chrome Free

20

AD23-L17C857-AA

SHIELD REAR BUMPER OPENING

21

6G33-611D38-BA

Bracket Assembly, Front Seat Belt Retainer, RH

22

6G33-611D39-BA

Bracket Assembly, Front Seat Belt Retainer, LH

23

703142

Bolt, M8 x 38, Hex Flange Head

24

6G33-5D022-AD

BRACKET REAR SUB FRAME STABILISER

25

6G33-9N172-AE

ASSEMBLY PANEL FUEL TANK COMPARTMENT PT LWR COMP

26

6G33-9A032-AE

Heatshield, fuel tank

27

6G33-WE600041-AB

WASHER STAR LOCK

28

W710409S300

Rivet

29

702509

STUD M8x23 + M6x14 HEX FLANGE PILOT

30

4G43-9N070-AB

INSULATION - FUEL TANK SUPPORT

31

6G33-18A000-AD

Member, Rear Shock Absorber Mounting, RH

32

6G33-18A001-AD

Member, Rear Shock Absorber Mounting, LH

33

703185

M12x1.75x25 HEX FLANGE HEX HEAD CHROME FREE

34

4G43-501B0-AC

NUT PLATE REAR SUB FRAME REAR M14

35

P06G3328442AG

Brace, body rear centre panel, RH

36

P06G3328443AG

Brace, body rear centre panel, LH

37

703121

Screw, M8 x 25, Hex Flange Head

38

AG33-10N873-AA

Mounting Panel, Amplifier

39

703152-PK

Screw/Washer M6x20 HEX Pilot Chrome Free Pack of 10

40

9G43-111C60-GF

Panel, Dummy Floor Front, LHD

40

4G43-111C61-AE

Panel, Dummy Floor Front, RHD

41

37-86191

EDGE PROTECTION STRIP (280mm)

42

3786250

Edge Protection, Switch Harness, 150mm

43

703163

Nut, M6, Hex Flange Head, Locking

44

4G43-111B48-AB

Panel, Dummy Floor Cover, Front
