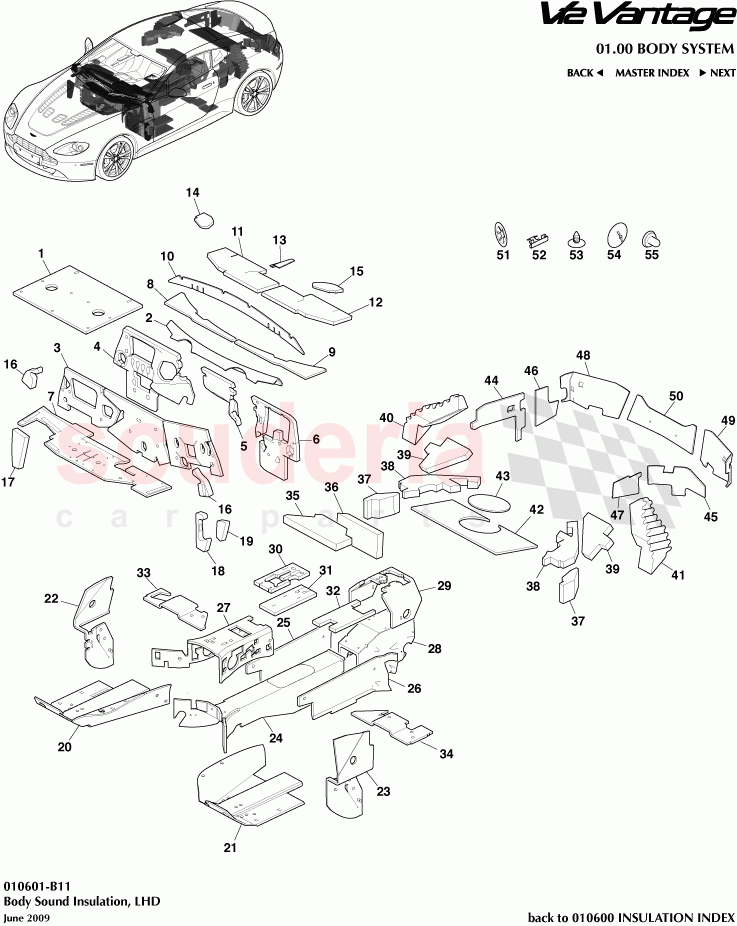

No

Kod

Parça Adı

1

6G33-84959-AB

NVH FOAM PAD MIDDLE DASY ASSEMBLY

2

6G33-68066-AC

NVH DASH FOAM UNDER SIDE CAVITY ASSY

3

6G33-102B00-AE

INS ENG HSG SND LHD

4

8G43-002K05-AA

BAFFLE BODY FRONT PANEL LHD RH

5

8G43-021A59-AA

Baffle, Body Front Panel, Centre

6

8G43-015A23-AA

BAFFLE BODY FRONT PANEL LHD LH

7

HG33-00152-AA

INS BDY TO FR LHD

8

4G43-02292-AB

Insulation, Sound, Cowl Side Panel Lower, RH

9

4G43-02293-AB

Insulation, Sound, Cowl Side Panel Lower, LH

10

4G43-02139-AB

BAFFLE COWL TOP IN END

11

8G43-48182-AB

Foam Pad, Under IP, RH

12

8G43-48181-AB

Foam Pad, Under IP, LH

13

9G43047B22AA

Insulation, I/ panel radio speaker opening, centre

14

9G43-046B72-AA

Insulation, I/ panel radio speaker opening, RH

15

9G43-046B73-AA

Insulation, I/ pnl radio speaker opening, LH

16

6G33-28112-AA

NVH Foam Pad Assy, Fender Upper

17

6G33-28110-AA

NVH Foam Pad Assy, Fender Lower, RH

18

6G33-28111-AA

NVH Foam Pad Assy, Fender Lower, LH

19

6G33-28121-AA

NVH Foam Pad Assy, Fender Centre, LH

20

4G43-54571-AF

Baffle, Floor, RH

21

4G43-54572-AE

Baffle, Floor, LH

22

4G43-310A58-AC

A-PILLAR LOWER NVH RH

23

4G43-310A57-AC

A-PILLAR LOWER NVH LH

24

4G43-114B26-AH

Insulation, Tunnel

25

8G33-24926-AB

PAD TUNNEL SIDE RIGHT HAND

26

8G33-24927-AB

PAD TUNNEL SIDE LEFT HAND

27

8G43-11446-AB

Insulation, Sound, Floor Pan Gear Shift Cover

28

6G337Z309AD

Insulation, transmission case cover

29

6G33-5416-AD

NVH TUNNEL REAR INNER COMPARTMENT FLEECE

30

6G33-218060-AB

NVH GEAR SHIFTER UPPER ASSEMBLY

31

6G33-218061-AB

NVH GEAR SHIFTER LOWER ASSEMBLY

32

6G33-13082-AA

NVH, Tunnel Top Arm Rest

33

8G33-11204-AB

NVH, Rear Floor Pan, RH

34

6G33-11205-AB

NVH, Rear Floor Pan, LH

35

6G3313032AB

NVH, Battery Compartment, Top

36

6G33-199229-AB

NVH, Battery Compartment, Rear

37

6G33-31338-AA

Pad, Rear Wheel

38

6G33-24562-AA

Pad, Centre Body Pillar

39

6G3331181AB

Insulation, rear quarter NVH

40

6G33-C27746-AC

Insulation Rear Quarter Panel, RH

41

6G33-C27747-AC

Insulation Rear Quarter Panel, LH

42

6G33-C56157-AB

Fleece, Fuel Tank Top

43

6G33-405A32-AA

NVH, Fuel Tank Door Cover Assembly

44

6G33-50106-AA

LUGGAGE COMPARTMENT SIDE FLEECE RH

45

6G33-50107-AA

Fleece, Luggage Compartment, LH

46

6G33-45702-AB

Door Assembly, Load Compartment, RH

47

6G33-45704-AC

LHS LOADSPACE DOOR

48

6G33-F46402-AB

Fleece, Rear Side, RH

49

6G33-N46402-AB

Fleece, Rear Side, LH

50

6G33-A46402-AB

Fleece, Luggage Compartment, Rear Centre

51

6G33-WE600041-AB

WASHER STAR LOCK

52

6G33-34983-AB

Clip, Edge, NVH Retainer

53

697648

Fastener, Fir Tree

54

697564

Retainer, Push On

55

702212

Snapsac, 6.8mm, Push-on, Plastic
