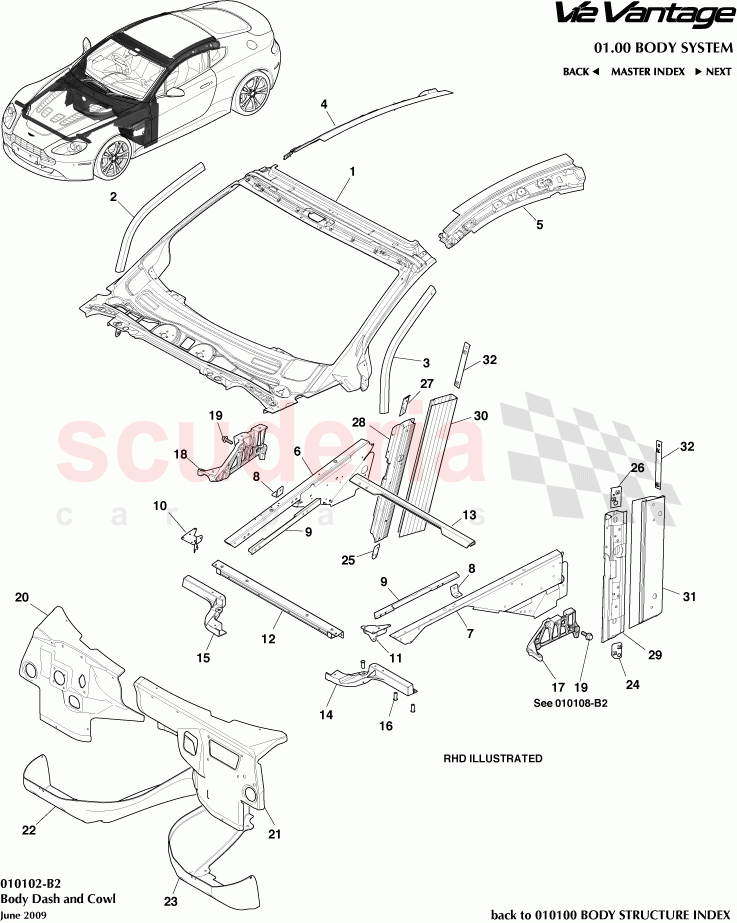

No

Kod

Parça Adı

-

EG33-C03014-AB

FR ASY W/SHIELD

-

DG43-F01760-AA

Panel, Dash Upper, RH, LHD

-

DG43-F01761-AB

Panel, Dash Upper, LH, LHD

1

4G43C03014BR

Frame Assembly, Windshield, RHD

2

GOGG33-F02526-AA

REINF FRT BDY PLR

3

GOAG33-F02527-AA

Pillar, Front Body Reinforcement, LH

4

CY83-02538-BA

Reinforcement Assembly, A Post, RH

5

CY83-02539-BA

Reinforcement Assembly, A Post, LH

6

6G33-20-10442

Support Assembly, Front Fender, RH

7

6G33-20-10443

ASEMBLY FRONT FENDER SUPPORT LLH

8

6G33-C18178-AB

Bracket, Gas Damper Mounting

9

GODG43-17F790-BA

Nutplate, Shotgun, M10

10

P0AD23-5048-AA

Bracket, Cross Member, RH

11

P0AD23-5049-AA

Bracket, Cross Member, LH

12

AD23-5D066-AA

CROSS MEMBER FRONT UPPER

13

AG33-10414-AA

MEMBER FRONT CS AT DH

14

AD23-16430-AA

Casting, Front Side Member to Front Cross Member, RH

15

AD23-16431-AA

Casting, Front Side Member to Front Cross Member, LH

16

DG43-F01760-BA

Panel, Dash Upper, RH, RHD

17

DG43-F01761-BA

Panel, Dash Upper, LH, RHD

18

BG33-F01612-AA

Panel, Dash Side, RH

19

BG33-F01613-AA

Panel, Dash Side, LH

20

6G33-375732-AB

Screw, 5.5 x 19, Self Drill, Hex Flange head

21

6G33-15110-AB

Nutplate M8, ??post hinge, lower, RH

22

6G3315111AB

Nutplate M8, ??post hinge, lower, LH

23

6G33-71490-AA

Nutplate, A Post Hinge, Upper, RH

24

6G33-94545-AA

Nutplate, A Post Hinge, Upper, LH

25

GOAG33-F02660-AB

Pillar, Front Body Lower Front, RH

26

GOAG33-F02661-AB

Pillar, Front Body Lower Front, LH

27

GOAG33-F02662-AB

Extrusion, Front Body Pillar Lower, RH

28

GOAG33-F02663-AB

Extrusion, Front Body Pillar Lower, LH

29

6G33-486226-AA

Nutplate, M8, IP beam

30

6G33-68676-AC

Rivet Structural 6.5 x 14, Blind
