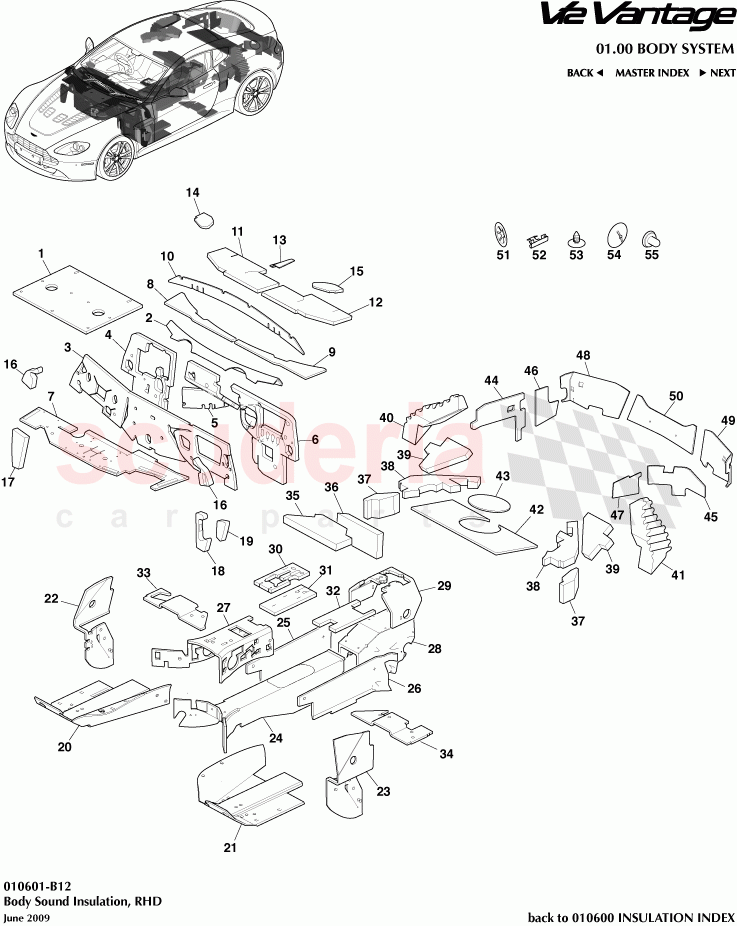

No

Kod

Parça Adı

1

CG4302139AA

Baffle, cowl, top in end

2

6G33-68066-AC

NVH DASH FOAM UNDER SIDE CAVITY ASSY

3

6G33-102B00-BE

INS ENG HSG SND RHD

4

8G43-002K06-AB

BAFFLE BODY FRONT PANEL RHD RH

5

8G43-021A58-AB

BAFFLE BODY FRONT PANEL RHD CENTRE

6

DD33-015A22-AG

DSH INR LH RHD

7

HG33-00152-BA

INS BDY TO FR RHD

8

4G43-02292-AB

Insulation, Sound, Cowl Side Panel Lower, RH

9

4G43-02293-AB

Insulation, Sound, Cowl Side Panel Lower, LH

10

8G43-48182-AB

Foam Pad, Under IP, RH

11

8G43-48181-AB

Foam Pad, Under IP, LH

12

9G43047B22AA

Insulation, I/ panel radio speaker opening, centre

13

9G43-046B72-AA

Insulation, I/ panel radio speaker opening, RH

14

9G43-046B73-AA

Insulation, I/ pnl radio speaker opening, LH

15

6G33-28112-AA

NVH Foam Pad Assy, Fender Upper

16

6G33-28110-AA

NVH Foam Pad Assy, Fender Lower, RH

17

6G33-28111-AA

NVH Foam Pad Assy, Fender Lower, LH

18

6G33-28121-AA

NVH Foam Pad Assy, Fender Centre, LH

19

4G43-54571-AF

Baffle, Floor, RH

20

4G43-54572-AE

Baffle, Floor, LH

21

8G43-310A58-AB

Insulation, Body Side Front, RH

22

8G43-310A57-AC

Insulation, Body Side Front, LH

23

4G43-114B26-AH

Insulation, Tunnel

24

8G33-24926-AB

PAD TUNNEL SIDE RIGHT HAND

25

8G33-24927-AB

PAD TUNNEL SIDE LEFT HAND

26

8G43-11446-AB

Insulation, Sound, Floor Pan Gear Shift Cover

27

6G337Z309AD

Insulation, transmission case cover

28

6G33-5416-AD

NVH TUNNEL REAR INNER COMPARTMENT FLEECE

29

6G33-218060-AB

NVH GEAR SHIFTER UPPER ASSEMBLY

30

6G33-218061-AB

NVH GEAR SHIFTER LOWER ASSEMBLY

31

9G33-13082-AA

NVH, Tunnel Top Arm Rest

32

8G33-11204-AB

NVH, Rear Floor Pan, RH

33

6G33-11205-AB

NVH, Rear Floor Pan, LH

34

6G3313032AB

NVH, Battery Compartment, Top

35

6G33-199229-AB

NVH, Battery Compartment, Rear

36

6G33-31338-AA

Pad, Rear Wheel

37

6G33-24562-AA

Pad, Centre Body Pillar

38

6G3331181AB

Insulation, rear quarter NVH

39

6G33-C27746-AC

Insulation Rear Quarter Panel, RH

40

6G33-C27747-AC

Insulation Rear Quarter Panel, LH

41

6G33-C56157-AB

Fleece, Fuel Tank Top

42

6G33-405A32-AA

NVH, Fuel Tank Door Cover Assembly

43

6G33-50106-AA

LUGGAGE COMPARTMENT SIDE FLEECE RH

44

6G33-50107-AA

Fleece, Luggage Compartment, LH

45

6G33-F46402-AB

Fleece, Rear Side, RH

46

6G33-N46402-AB

Fleece, Rear Side, LH

47

6G33-A46402-AB

Fleece, Luggage Compartment, Rear Centre

48

6G33-WE600041-AB

WASHER STAR LOCK

49

6G33-34983-AB

Clip, Edge, NVH Retainer

50

697648

Fastener, Fir Tree

51

697564

Retainer, Push On

52

702212

Snapsac, 6.8mm, Push-on, Plastic

53

4G43-3678AA-AA

Fir Tree, Push On, 5mm Stud
