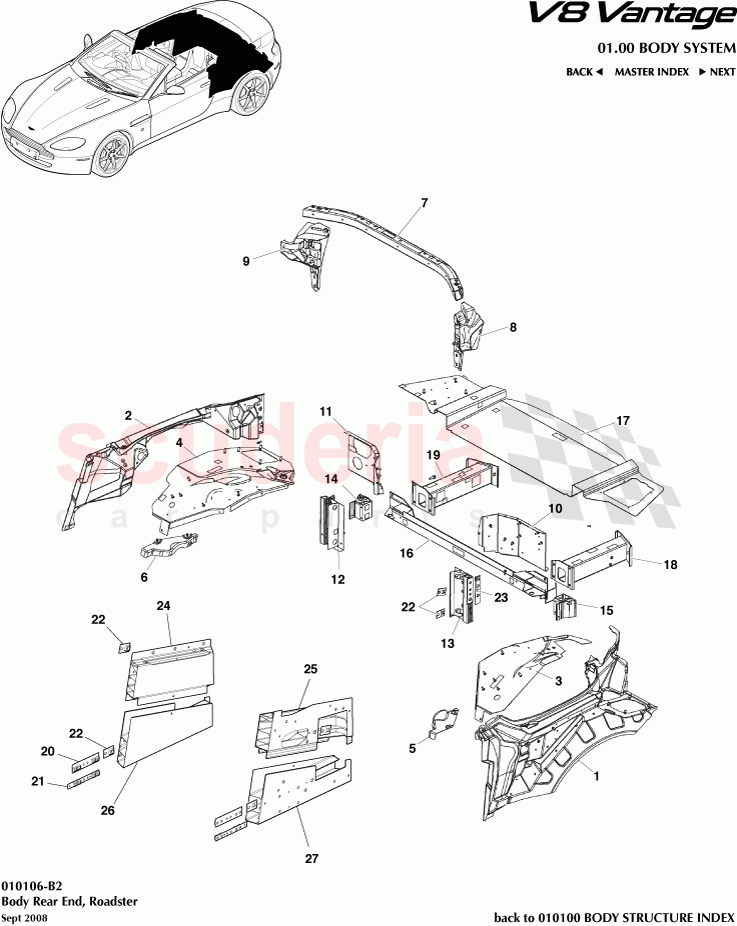

No

Kod

Parça Adı

1

BG33-L41033-AB

PLR ASSY RR CNR LH

1

6G33-L41033-AH

PILLAR ASSEMBLY REAR CORNER LH

2

6G33-L41038-AL

PILLAR REAR CORNER RH

4

6G33-375732-AB

Screw, 5.5 x 19, Self Drill, Hex Flange head

3

BG33-L279A55-AB

PANEL QUARTER WHEEL HOUSE INNER REAR LH

4

6G33-L279A54-AG

PANEL QUARTER WHEEL HOUSE INNER REAR RH

5

6G33-L243A87-AA

REAR QUARTER CLOSER PANEL LH

5

1R12-642790-AA-PK

Scrivet-8mm DIA PNL 3-10mm Pack of 5

6

6G33-L243A86-AA

REAR QUARTER CLOSER PANEL RH

7

6G33-L41623-AF

REINFORCEMENT TAIL GATE SUPPORT BEAM

8

6G33-L416W21-AF

REINF TL/GT SUPT BEAM MTG BRKT LH

19

703120

Screw M8-1.25-90 Hex Skt Hd Shoulder

9

6G33L416W20AF

Mounting bracket, RH

10

6G33-L10515-AJ

PNL RR FLR SD OTR LH

11

6G33-L10514-AK

PNL RR FLR SD OTR RH

11

6G33-L10514-AG

PANEL REAR FLOOR SIDE OUTER RH

12

AG33-L101C85-AA

BRACKET SIDE MEMBER REAR LH

13

703121

Screw, M8 x 25, Hex Flange Head

13

AG33-L101C84-AA

BRACKET SIDE MEMBER REAR RH

14

GOAG33-5A355-AA

SUPPORT SUBFRAME REAR RIGHT HAND

15

GOAG33-5A356-AA

SUPPORT SUBFRAME REAR LEFT HAND

16

AG33-L40338-AA

REINFORCEMENT LOWER BACK CENTRE PANEL

17

6G33-L47124-AD

PANEL FLOOR TRUNK

18

AG33-17F035-BA

Absorber Assembly, Rear Bumper, LH

19

AG33-17F034-BA

Absorber Assembly, Rear Bumper, RH

20

6G33-5N394-AB

Nutplate Bracket, Rear Subframe Stabiliser, Upper

21

6G33-5N393-AB

Nutplate, Rear Sub frame Mounting Bracket, Lower

22

6G33-80997-AA

Nutplate, M12, Rear Damper Mounting, Front

23

6G33-L13B452-AA

PANEL REAR LAMP FINISHER RH

23

6G33-L13B453-AA

PANEL REAR LAMP FINISHER LH

23

8G33-L45108-AA

TRUNK LID SURROUND

23

6G33-L549C071-AC

TLS DRAIN ASSY

23

8G43-334177-AA

Nutplate, M12, Rear Damper Mounting, Rear

24

AG33-C10282-AA

Member, Rear Floor Side Upper, RH

25

AG33-C10283-AA

Member Assy, Rear Floor Side Upper, LH

26

AG33-10456-AA

Member, Rear Floor Side, RH

27

AG3310457AA

Member Assy, Rear Floor Side, LH
