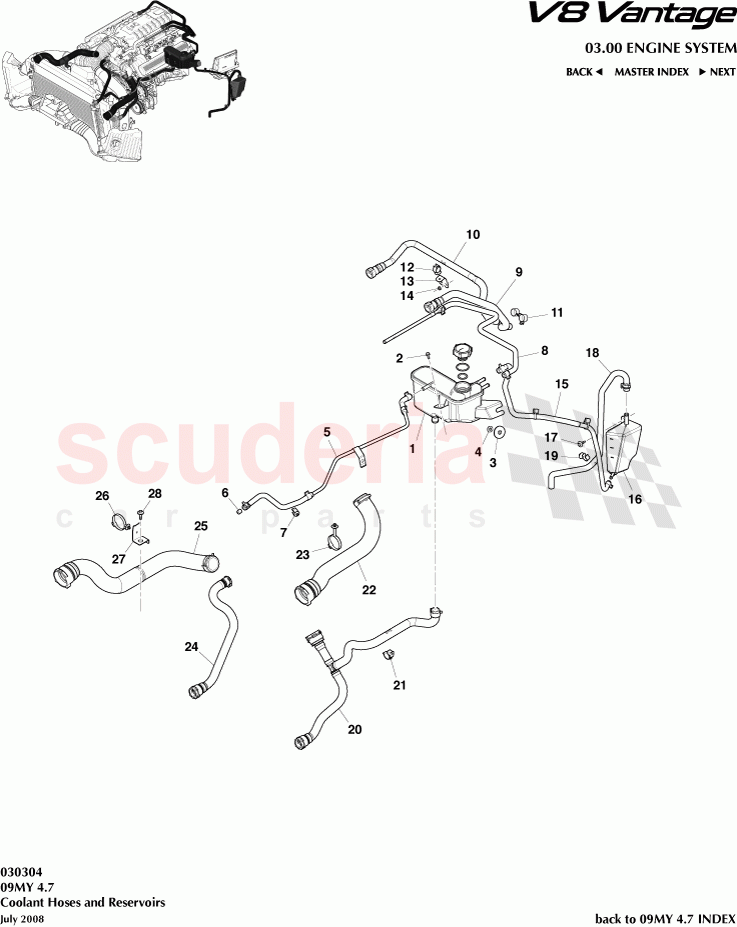

No

Kod

Parça Adı

1

6G33-8333-AC

HOSE - RADIATOR

2

701172

Clip, 16 x 2.8 - 3.3

3

6G33-2A155-BA

BRACKET - RAD INLET HOSE ASSY

4

6G338C363EA

Hose Assy, radiator degas

4

703734

Bolt and Washer M6x25 hex hd

5

6G33-8C363-BA

HOSE - RADIATOR DEGAS ASSY

6

6G33-8C363-EC

RAD DEGAS HOSE

7

4G43-8C363-DA

HOSE - RADIATOR DEGAS ASSY

23

702904

Spring Clamp, Hose, 17 x 15

9

6G33-8C350-AB

MAKE UP HOSE ASSY

10

702567

HOSE CLIP

11

702902

HEAVY DUTY SPRING BAND CLAMP 27 x 15mm

12

1R12-37-10166

Switch, Coolant Level

12

4G4319B518AE

Tank assy, expansion

12

4G43-8101-BA

Pressure Cap Assy

13

703151

Screw M6x16 Washer Hex HD Chrome Free

14

6G33-1660-AC

SPACER-COOLANT RESERVOIR ASSY

15

703612

Nut & Washer, M6, HVAC to XCB

16

6G33-8N029-AB

HOSE - RADIAOTR OVERFLOW EXT

19

6G33-8B081-AB

HOSE - RADIATOR SUPPLY TANK OVERFLOW

20

6G33-TBD2-BA

Reservoir, Coolant Expansion

21

6G33-8003-EC

ENGINE DEGAS HOSE

22

6G33-8003-DA

HOSE THERMOSTAT HOUSING CROSSOVER BLEED

23

6G33-8003-CA

PIPE CROSSOVER BLEED

24

6G33-18663-BB

HOSE OUTLET HEATER TO WATER PUMP

24

6G33-18663-AC

HOSE OUTLET HEATER TO WATER PUMP

25

701335

Clip, Hose Spring, 20 x 15

26

6G33-18696-BC

HEATER INLET HOSE ASY

26

6G33-18696-AB

HOSE HEATER INLET ASSY

27

6G33-2A155-AB

BRACKET - HOSE CLIP

28

702295

Nut, M5, Hex Flange Head

29

702569

C-CLIP

30

6G33-8C289-AC

HOSE - ENGINE COOL RETURN

31

6G33-1861-AB

TIE WRAP

31

1R12-322666-AA-PK

COOLANT ANTIFREEZE (OAT) 1 Ltr BOTTLE -BOX OF 12
