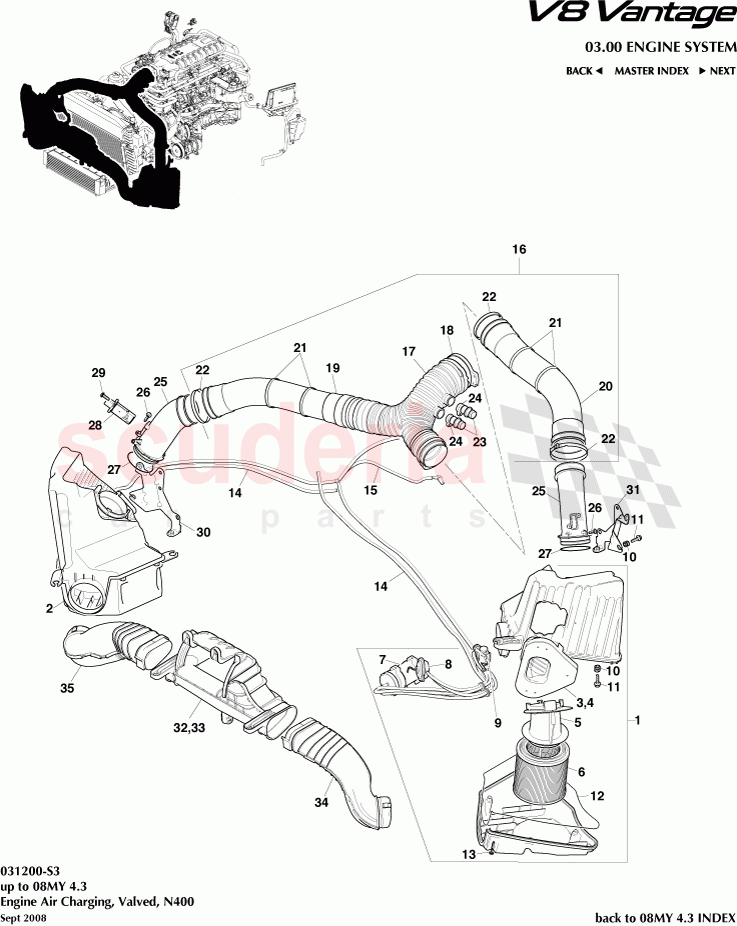

No

Kod

Parça Adı

1

8G33-9600-CA

AIRBOX ASSY - LHS

2

8G33-9600-BA

AIRBOX ASSY - RHS

3

8D33-3N731-AA

VALVE HOUSING ASSEMBLY

4

8D33-5F006-AA

RIVET

6

4G43-9601-AB-PK

Air Filter Cleaner, Box of 2

7

8D33-2K061-AA

VACCUUM RESERVOIR

8

8D33-7L576-AA

Actuator, Control Valve

9

6L34-9H465-BA

Valve assy, Therm Air Control

10

4G43-9697-CA

Isolator, Engine Airbox

10

4G43-5144-AA

Spacer, Engine Airbox Isolator

11

703025

Screw, M6 x 25, Hex Flange Head

12

4G43-9C664-AB

Gasket - Air Cleaner

26

4G43-0410-AA

Screw - 5.2x32 Self Tap

14

8G3343836AA

Hose assy, vacuum

15

8G33-43836-BA

VAC HOSE ASSY

16

8G339K146AA

Tube assy, intake manifold air inlet

23

6G33-9D609-BD

ASSY THROTTLE BODY Y PIECE

18

6G33-6N811-DA

Clamp - Herbie 96mm DIA

20

6G33-9C623-EA

DUCT ASSY AIR OUTLET

21

8D33-ANR1350-AA

CABLE TIE HOSE CLIP ASSEMBLY

22

86G336N811CA

- Clamp, Herbie 85mm

24

6G336N811BA

Clamp, Herbie 26mm

25

6G33-12B612-AD

BODY-ENG ELECT MS AI

27

4G43-6C704-BA

O Ring Engine Duct interior

27

4G43-6C704-AA

O Ring - Engine Duct

28

4G43-08-10933

Mass Air Flow Meter

29

4G43-0410-BB

Screw, M35 x 12 Self Tap

30

6G33-9B609-BC

BRACKET - AIR CLEANER RH

31

6G33-9B609-CC

Bracket - Air Cleaner LH

32

6G33-9P866-CB

ASSY AIR INTAKE DUCT

33

4G43-2705-AA

Rivet, Plastic

34

6G33-9A675-HA

ASSY - A/CLEANER INTAKE LH

35

6G33-9A675-GA

ASSY - A/CLEANER INTAKE RH
