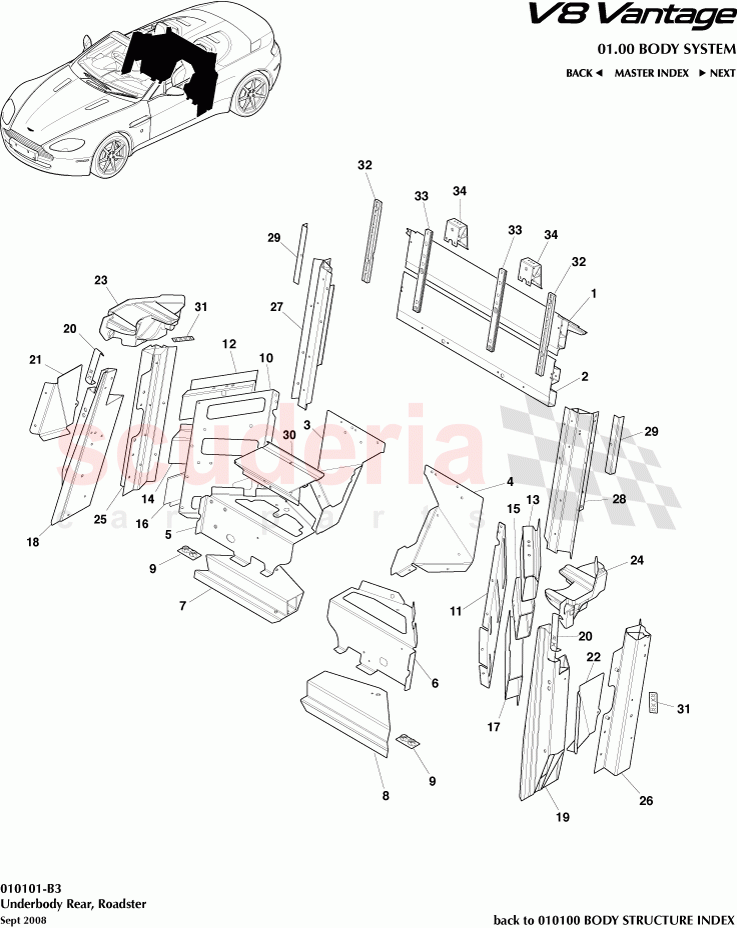

No

Kod

Parça Adı

1

AG33L101B44AA

Member, rear, centre section, upper

2

6G33L10786AK

Member, rear floor, centre section, front

3

6G33-10798-AJ

REINF FRONT FLOOR CROSS REAR

4

AD2310799AA

Reinforced front floor, centre section rear, LH

4

BG33-10799-AA

REINF FRONT FLOOR CROSS REAR

5

7G33-111B22-AA

Reinforcement, Front Floor Pan to Side Member Rear, RH

6

7G33-111B23-AC

REINF FRONT FLOOR PAN TO SIDEMEMBER REAR LH

7

AG33-109A68-AB

MBR FRT FLR CS RR RH

7

6G33109A68AE

Member, front floor centre section, rear, RH

8

GOBG33-109A69-BA

MBR FRT FLR CS RR LH

9

6G33-347863-AC

Nutplate, Rear Subframe Front, M14

10

6G3327924AG

Panel, Rear Quarter, Inner, RH

11

8G33-27925-AA

PANEL REAR QUARTER INSIDE LH

11

AD23-27925-AA

Panel, Rear Quarter, Inner, LH

12

6G33L101K92AG

Member, floor side upper rear, RH

12

6G33L101K92AE

Member, floor side upper rear, RH

13

6G33L101K93AG

Member, floor side upper rear, LH

13

6G33L101K93AE

Member, floor side upper rear, LH

14

6G3310470AB

Member, floor side inner rear, RH

15

6G3310471AB

Member, floor side inner rear, LH

16

6G3310504AC

Member, extension floor side lower rear, RH (not illustrated)

17

6G33-10505-AF

EXTRUSION FLOOR SIDE LOWER MEMBER REAR LH

18

AG2324312AA

Pillar, centre body, RH

19

AG2324313AA

Pillar, centre body, LH

20

6G33-C393126-AB

NUTPLATE B POST M8

21

6G3324576AB

Panel, centre body plr, RH

22

6G3324577AB

Panel, centre body plr, LH

23

6G33C243A60AE

Reinforced centre body, upper outer pillar, centre, RH

24

6G33C243A61AE

Reinforced centre body, upper outer pillar, centre, LH

25

6G33-24314-AB

PILLAR CENTRE BODY OUTER REAR RH

26

AD2324315AA

Pillar, centre body outer rear, LH

27

6G33L24326AH

Pillar, centre body inner rear, RH

28

6G33L24327AH

Pillar, centre body inner rear, LH

29

6G3324320AB

Reinf, centre body pillar

30

AG33-10762-AA

Support, Battery Tray

31

6G33-602A66-AA

Plate, Front Seat Belt Attachment

32

6G33L38559AB

Spacer plate, ROPS

33

6G33L38887AC

Spacer plate, centre, ROPS

34

6G33L403C66AE

Bracket, upper back panel brace
