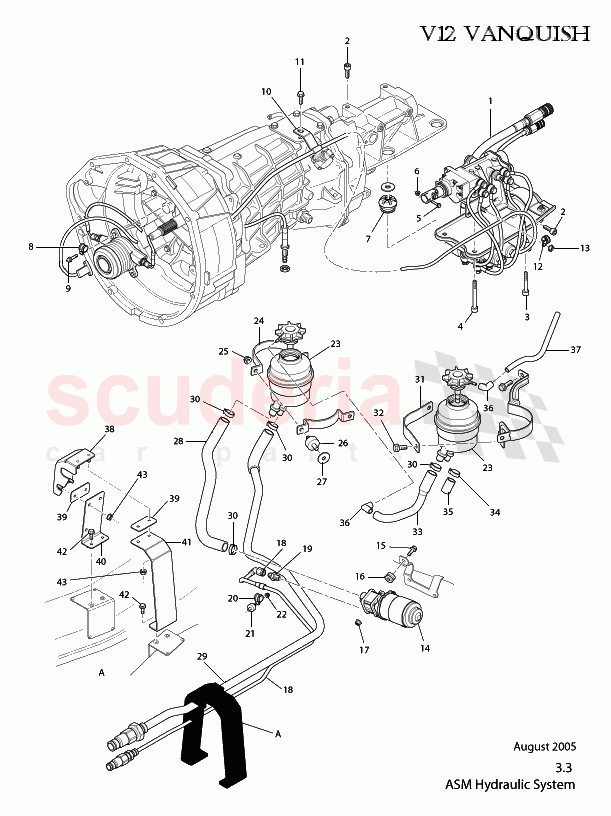

Aston Martin Yedek Parça - Vanquish (2001-2007) Parts - ASM Hydraulic System
Parça Kodları
No
Kod
Parça Adı
1
4R12-41-10718
ASM ACT/MAN
1
6G33-7A564-AA
Clutch Bearing Slave Assy
2
703265
Screw, M6 x 16, Hex Flange Head
3
700151
SCREW M8x45 HEX FLG8
25
703739
Nut, M8, Hex Flange Head
43
703193
BOLT M8 x 55 GRD 8 FLANGE HEX HEAD CHROME FREE
5
703153
BOLT M8x33 FLNG PIL ADH 10.9 CHROME FREE
6
1R12384064AA
Gaiter, cardan joint
6
700920
NUT M8 HEX FLG P/T MTL 10
7
1R12-381756-AC
AV MOUNT - ASM MFOLD
9
699083
SCREW M6 x 30 FLG HD
10
1R12-382674-AB
FIXING STRAP HOSE
13
699697
Nut, M6, Flg Duralock
14
1R12-41-10689
ASM PUMP KIT
15
703199
Bolt M6x30 HEX FLG Chrome Free
16
32-80356
GROMMET
43
703169
NUT - M6 HEX FLANGE CHROME FREE
18
1R12-381725-AG
HOSE - ASM PUMP TO ASM MANIFOLD (HP)
19
1R12-382818-AB
ADAPTOR ASM PUMP M12x1.0
21
699683
ISOLATOR - TYPE A 20-20
23
1R12-384568-AA
RESERVOIR - HYDRAULIC OIL
24
1R12-381441-AB
BRKT-ASM RESERVOIR
26
699685
ISOLATOR - TYPE A 30-15
27
699681
WASHER
28
1R12-381449-AF
HOSE ASSY - ASM
29
1R12-381729-AH
HOSE-Y-PIECE TO ASM
30
699094
Clip, Hose, Spring Loaded, 16-25
30
699721
HOSE CLAMP DIA 21
30
699545
HOSE CLAMP OETIKER REF: 025.6 - 706R
31
1R12-384340-BA
BRACE RES O/FLOW
32
702972
Screw, M8 x 14
33
1R12-384430-AB
HOSE - RESERVOIR TO OVER FLOW
34
8D33-60155-AA
CLAMP - PAS HOSE
35
1R12-384431-AA
HOSE - BLANK ASM OVERFLOW
36
1R12-382943-AA
ELBOW - ASM RESERVOIR PIPE
37
1R12-382942-AA
ASM VENT PIPE
38
1R12-383289-AD
BRACKET - HPLP SUPPORT
39
1R12-383581-AB
ISOLATOR RUBBER
41
1R12-385777-AA
BRACKET ASM SUPPORT
41
700437
SPACER ASM BRACKET 12MM
42
700606
Screw, M6 x 12, Hex Flange Head
43
1R12-103825-AA
STUD - REAR MOUNT - GEARBOX
43
1R12-41-10465
MAGNETIC SENSOR UPGRADE KIT
43
1R12-37-10370A
KIT-CLUTCH POSITION SENSOR
43
4R12-386325-AB
PLCD SENSOR MAIN BODY
43
701200
LOCATING SCREW M4
43
4R12-386327-AA
PLCD MAGNET CARRIER
43
5R13-386362-AA
GASKET - MODIFIED GEARSHIFT SENSOR
43
4R12-376322-AA
TRANSMISSION GEAR POSITION LINK LEAD
43
91842
H PLATE
43
4R13-416328-AA
BLANKING PLUG - GEARBOX (SERVICE ONLY)
43
703188
SCREW M8 x1.25 x 20 FLANGE HEX HEAD CHROME FREE
43
703273
WASHER WAVE SPRING M8
43
699751S
LUBRICANT-1 ltr ASM SYSTEM
