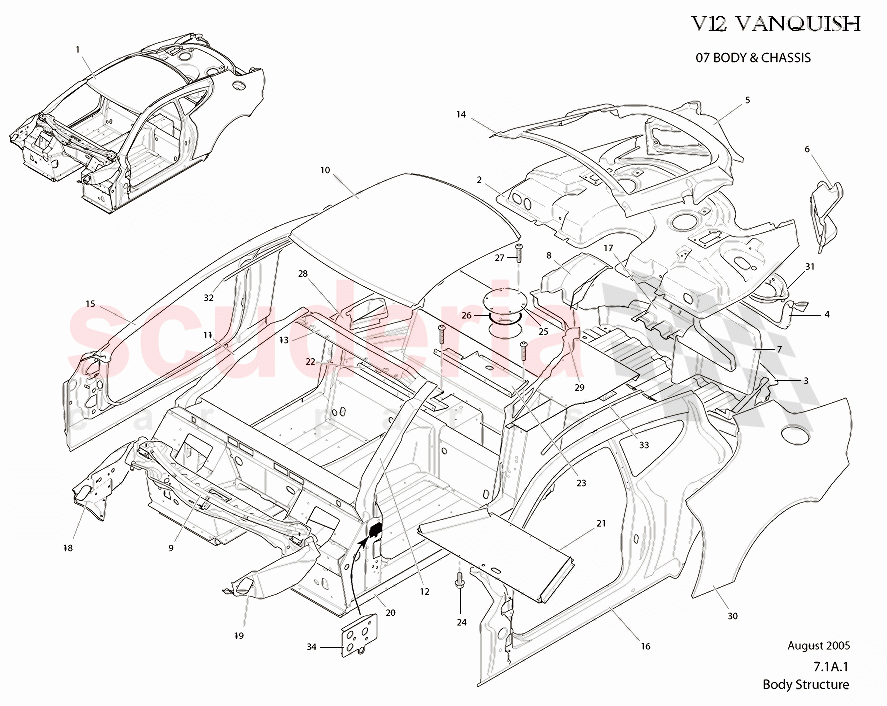

No

Kod

Parça Adı

1

1R12-60-10372

BODY STRUC ASY- C/W ROOF;RR WINGS; DRS & BT LD. PART IN STOCK

2

3R12165668AA

Upper cargo deck assy

2

3R12-165605-AA

UPPER CARGO DECK

2

6R13165668AA

Upper cargo deck assy

2

6R13-165605-AA

UPPER CARGO DECK

3

5R13-47000-AA

ASSY - LOWER CARGO DECK - CANADIAN

3

1R12-162965-AH

ASY LOWER CARGO DECK

3

3R12-165879-AB

INFILL - LOWER CARGO DECK

3

700414

BLANKING GROMMET 32MM

4

1R12-161055-AG

SEAL CARRIER-UCD

5

3R12-165690-AA

LAMP REINFORCEMENT RH

6

3R12-165691-AA

LAMP REINFORCEMENT LH

7

1R12-161056-AC

FILLER PIPE COVER - TRUNK

8

1R12-162371-AE

BRACE - REAR SCREEN SURROUND

8

4R12162371AA

Brace, rear screen surround

19

1R12-632310-AP

ASSY - PLENUM CHAMBER

10

1R12-634587-AA

ASSY ROOF

11

1R12-212100-AC

A PILLAR REINF RH

12

1R12-212101-AC

A PILLAR REINF LH

13

5R1342200AA

Surround assy, rear screen (rework)

13

1R12-210663-AF

REINFORCEMENT-FRONT HEADER

14

1R12-213357-AG

ASSY REAR SCREEN SURROUND

15

1R12-630092-AT

PANEL - BODY SIDE RH

16

1R12-630091-AT

PANEL-BODYSIDE LH

17

1R12162366AB

Brace, lower cargo deck, rear

20

3R12165714AA

Bonded monocoque assy

20

3R12165714AC

Bonded monocoque assy

20

1R12-160332-AJ

ASSY - BONDED MONOCOQUE

20

3R12165714AB

Bonded monocoque assy

20

3R12165714AD

Bonded monocoque assy

21

1R12-160584-AF

ASSY-TANK SHEAR PNL

22

1R12-160590-AF

PANEL-UNDERSEAT SHEAR RH

23

1R12-160591-AF

PANEL-UNDERSEAT SHEAR LH

24

700170

Screw, flg, M8 x 16

25

1R12161115AB

Panel, tank sender access

26

1R12-161114-AA

SEAL - TANK SENDER ACCESS

27

HY53-E804349-AA

M6 X 14 SCREW HEX HD

28

1R12-630288-AK

PANEL REAR QUARTER INNER RH

29

1R12-630289-AK

PANEL REAR QUARTER INNER LH

30

1R12-631029-AC

PANEL-REAR QUARTER OUTER ASSY LH

31

1R12-630090-AF

PANEL - REAR QUARTER OUTER RH

32

1R12-784198-AD

MLDING ROOF SIDE RH

33

1R12-784199-AD

MOULDING ROOF SIDE

34

704076

ADHESIVE 7222/9323

34

699283

ADHESIVE - ASHLAND PLIOGRIP 7770/660

34

704496

PAINT-STORM BLACK TINTED CLEAR-2 Ltrs

34

700484

MA300 PLEXUS STRUCTURAL ADHESIVE

34

700774

BETAMATE 2096 200ml CARTRIDGE

34

1R12-161128-AE

NUTPLATE - DOOR HINGE UPPER RH

34

1R12-161129-AE

NUTPLATE - DOOR HINGE UPPER LH

34

699302

ADHESIVE-BETAMATE 2700

34

699501

BETAPRIME 5404

34

8D33-M11B2502-AA

ZYMOL FIELD GLAZE CS1993

34

8D33-M11B24-AA

ZMOL WAX Z503

34

699648

SEALANT-GURIT ESSEX

34

700474

DOW GS-PRO 750ML FOAM - CAN

34

700784

BETAWIPE VP0 4604

34

699500

BETACLEAN 3900
