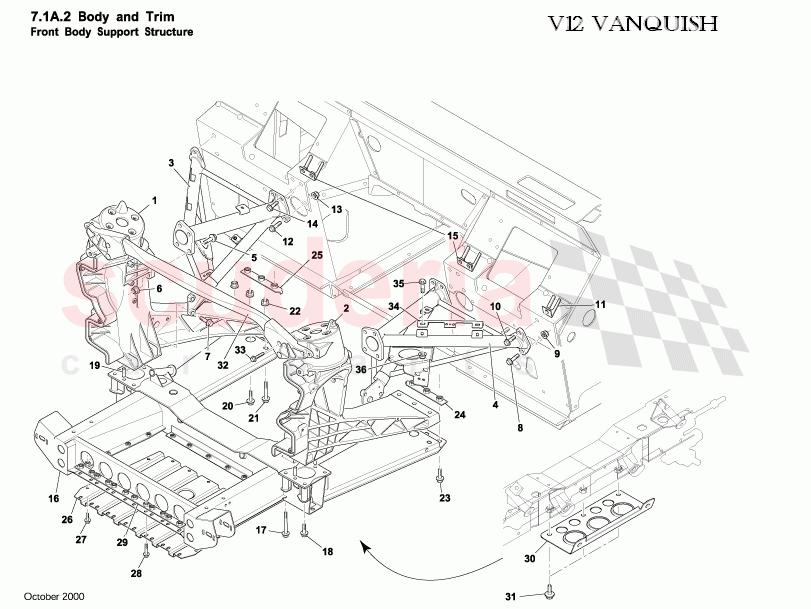

No

Kod

Parça Adı

1

1R12-200210-AJ

STRUT TOWER - RH MACHINING DETAIL

2

1R12-200209-AJ

STRUT TOWER - LH MACHINING DETAIL

3

1R12-160624-AH

ASSY STRUT TOWER SUPPORT RH

4

1R12-160625-AH

ASSY STRUT TOWER SUP SUPPORT LH

10

700212

BOLT M12x45 HEX FLG

22

700147

NUT M12x1.75 HEX FLG

12

703183

BOLT M10 x 45 HEX FLANGE HEX HEAD CHROME FREE

11

1R12-161798-AB

NUTPLATE - STRUT TOWER SUPPORT OUTER

18

702210-PK

Screw, M10 x 30, Hex Flange Head

15

1R12-161229-AB

NUTPLATE - STRUT TOWER SUPPORT

16

1R12-21-10697

ASSY ENGINE CRADLE- PAINTED AND WAXED

17

700217

BOLT M10x90 HEX FLG

19

1R12-201230-AA

DOWEL - DIAM 10 X 30 LONG

19

694858

LOCTITE 648 50ML BOTTLE

20

700219

BOLT M12x50 HEX FLG

21

700988

BOLT M12 x 90 FLG HD

23

700985

SCREW-M12 x 30 FLGHD GRD 10.9 ADH

24

1R12-161017-AA

NUTPLATE - FRONT SUBFRAME LOWER LH

25

1R12-161016-AA

NUTPLATE - FRONT SUBFRAME LOWER RH

26

5R13-5S021-AA

UNDERPANEL - VENTILATED

31

703730

Screw, M8 x 16, Hex Flange Head

28

700224

SCREW M8x30 HEX FLG8

29

1R12-201059-AB

NUT PLATE - MOUNTING RAIL

30

1R12103709AC

Assy Panel, Steering Rack

32

1R12-162405-AD

ASSY STRUT BRACE

33

703187

SCREW M8 x 25 FLANGE HEX HEAD CHROME FREE

33

700151

SCREW M8x45 HEX FLG8

33

700225

BOLT M8X50 HEX FLG HEAD GRD 10.9

34

1R12-632221-AC

BRACKET-APRON SUPPORT

35

703265

Screw, M6 x 16, Hex Flange Head

36

703163

Nut, M6, Hex Flange Head, Locking
