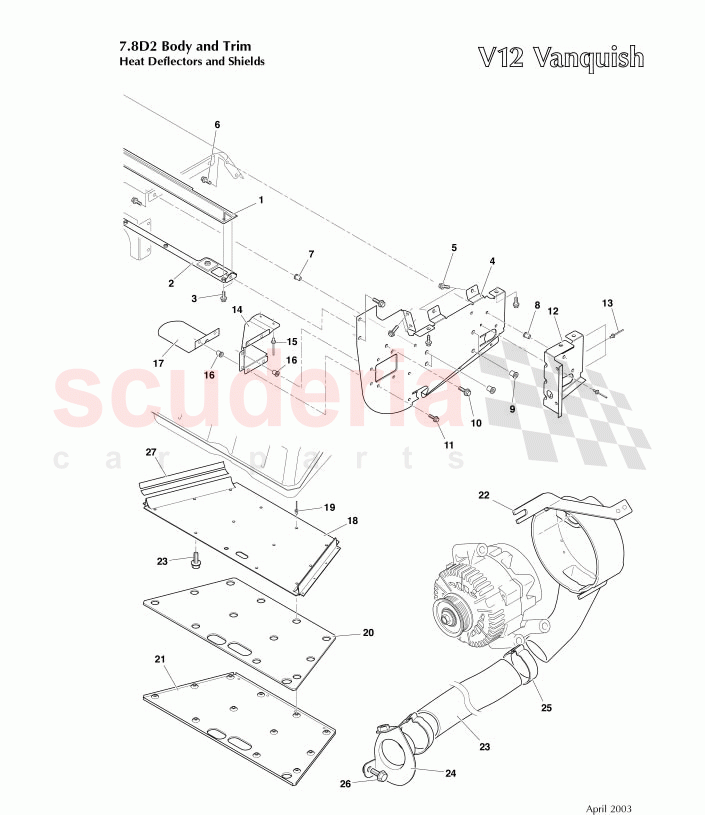

No

Kod

Parça Adı

1

1R12-160347-AG

TANKBAY CROSSMEMBER -MACHINING

2

1R12-160952-AD

NUTPLATE - TANKBAY CROSSMEMBER

3

1R12-162364-AJ

SIDE PANEL - LCD UNDERSIDE RH

3

703121

Screw, M8 x 25, Hex Flange Head

4

1R12-162365-AH

SIDE PANEL - LCD UNDERSIDE LH

28

703187

SCREW M8 x 25 FLANGE HEX HEAD CHROME FREE

6

700606

Screw, M6 x 12, Hex Flange Head

16

699282

RIVNUT - M6 STEEL - XYLAN COATED

9

699274

RIVNUT-M8 STEEL- XYLAN COATED

10

702972

Screw, M8 x 14

11

1R12-352816-AG

REAR HANGER - REINF BRACKET RH

26

703265

Screw, M6 x 16, Hex Flange Head

12

1R12-352817-AG

REAR HANGER - REINF BRACKET LH

13

1R12-102930-AE

OUTLET MUFFLER RH

19

700162

RIVET POP 4.9mm

14

1R12-102931-AE

OUTLET MUFFLER LH

17

1R12-272948-AA

HEATSHIELD SUBFRAME MOUNTING

18

1R12-160584-AF

ASSY-TANK SHEAR PNL

20

1R12-103352-AD

INSULATION TANKBAY PANEL

21

1R12-103353-AE

SECURING PANEL - TANKBAY INSULATION

22

1R12-371081-AA

HEATSHIELD - ALTERNATOR

23

1R12-370806-AA

DUCT - ALTERNATOR HEATSHIELD - SIZE 40 I/D x 740mm LONG

24

1R12-372293-AB

BRACKET-ALTERNATOR COOLING DUCT

25

697659

CLIP HOSE-SPR/LOADED

27

1R12-341851-AC

SUPPORT FUEL TANK BOTTOM
