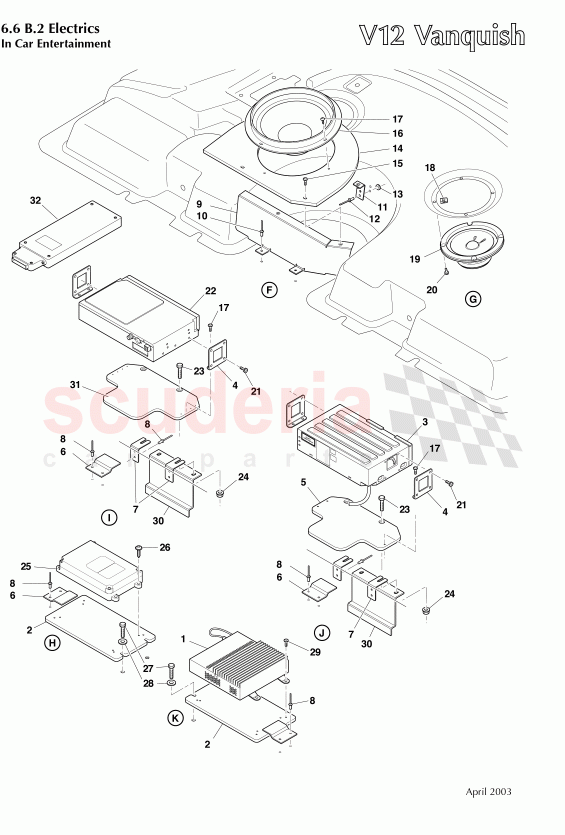

No

Kod

Parça Adı

1

3R12-375519-AC

AMPLIFIER ASSEMBLY

1

1R12370418AA

Power amplifier

2

3R12375520AB

Cover plate amplifier, anodised

2

699305

SCREW M6 X 20 SOCKET HEAD BUTTON

2

1R12-373920-AB

MOUNTING PANEL AMPLIFIER/PHONE MODL

2

4R12-376225-AB

AMP COVER PLATE

3

1R12-37-10705

CD MULTICHANGER & ENGRAVED PLATE ASSY

4

1R12-375390-AB

CD CHANGER / DVD MOUNTING BRACKET RH

4

1R12-375391-AB

CD CHANGER / DVD MOUNTING BRACKET LH

5

1R12-372709-AD

MOUNTING PANEL - CD CHANGER

5

694567

WASHER M6 x 18 OD 0.9 THICK ZINC PLT

27

700161

SCREW M6x25 HEX

26

692011

SCREW No10 x 3/4 FLG CRS REC S/T ORG SILL

31

1R12-372711-AB

CLAMP-ICE MOUNTING PANELS

7

1R12-372712-AB

BRACKET-ICE MOUNTING PANELS

8

700162

RIVET POP 4.9mm

9

1R12-374476-AB

FRONT SUPPORT PANEL SUB WOOFER

10

700163

RIVET

11

1R12-374642-AA

REAR SUPPORT BRACKET SUB WOOFER

12

700164

RIVET POP 4.8x15

13

699873

WASHER PLAIN 5.3x13

14

1R12-374475-AA

MOUNTING PANEL - SUB WOOFER

15

696042

Foam

15

697636

M5 x 20 FLG HD

16

3R12-375505-AA

BASS DRIVER ASSY

16

3R12-835503-AA

GASKET FOAM SUB WOOFER MOUNTING

16

707515

SCREW M5 X 16 PAN HEAD BLACK

16

1R12-37-10035

SPKR-SUB WOOFER

16

1R12373212AA

Speaker, sub woofer, premium

29

700165

SCREW No10x9mm S/TAP

18

699293

SPIRE CLIP NO.6

19

1R12-37-10033

SPKR-DOOR BASS 6.5in

19

1R12-37-10034

SPKR-DOOR BASS 6.5in

20

700121

SCREW No6x3/4in BLK REC PAN HD S/T

21

6R13-835540-AA

FOAM RING SPEAKER MOUNTING PLATE

21

700166

SCREW/STAR WASHER CHEMI BLACK

22

1R12-372960-AA

NAVIGATION ECU/DVD

23

692088

SCREW M6 x 16 HEX HD GRD 8 8 ZINC PLT

24

703169

NUT - M6 HEX FLANGE CHROME FREE

25

1R12-374206-AE

TRANSCEIVER GSM

25

700414

BLANKING GROMMET 32MM

30

3R12-835676-AA

ASSY BRACKET BOOT TRIM BULKHEAD

30

83-83387

VELCRO DUAL-LOCK SJ3551 (100mm)

30

1R12-833823-AA

BRACKET - BOOT TRIM BULKHEAD

31

3R12-835380-AA

LOWER BRACKET LINN AMP

31

699819

SCREW M6x25 SKT BUTTON FLANGE

31

3R12-835379-AA

UPPER BRACKET LINN AMP

31

700984

Screw, fig M6 x 12

31

700100

SCREW M4x12 PAN

31

700018

WASHER M4 - INTERNAL S/PROOF

31

700272

WASHER M4x9x0.8

31

5R13-18985-AA

MESH SPEAKER PARCEL SHELF

31

5R13-15601A41-AA

MESH SPEAKER SUB-WOOFER

31

5R13-18808-AB

TWEETER REAR PARCEL SHELF ASSY

31

5R1319B188AA

Bracket, tweeter locating

31

5R1319081AA

Bracket, tweeter fixing

31

700446

Screw, M4 x 40, black

31

6R13-375390-AA

BRACKET - SUB WOOFER AMPLIFIER SUPPORT

31

6R13-373920-AA

BRACKET - MULTI - MEDIA MODULE SUPPORT

31

6R13-375391-AA

BRACLET - I.C.E. AMPLIFIER SUPPORT

31

3R12-165504-AA

CLIP REAR SPEAKER ENCLOSURE

31

6R13-835206-AA

BRACKET - CD CHANGER SUPPORT

31

4G43-10E898-CC

AUSTRALIAN NAVIGATION DISK

31

6R13-165478-AA

ASSY SUB WOOFER MOUNTING

31

6G33-18C808-CD

Amplifier, Premium Audio, Alpine

31

4G43-10E898-AJ

NAVIGATION DISC EUROPE

31

1R12-37-10629

PREMIER SUB AMPLIFIER

31

4G43-10E898-BE

NAVIGATION DISC USA

31

4G43-10E887-EJ

MULTIMEDIA MODULE

31

6R13-375516-CA

CENTRE SPEAKER

31

6G33-14D417-AA

AM/FM TUNER

31

6R13-18808-AA

SUB WOOFER

31

HY53-E804349-AA

M6 X 14 SCREW HEX HD

31

6R13-375516-BA

REAR SHELF SPEAKER

31

6R13-375516-AA

DOOR SPEAKER

31

6R13-18808-BA

TWEETERS

31

701765

M4x12 SKT BUTTON HD SCREW - BLACK STAINLESS

31

703206

SCREW-M5 x 8 HEX FLG CHROME FREE

31

703163

Nut, M6, Hex Flange Head, Locking

31

699697

Nut, M6, Flg Duralock

31

1R12-374843-AB

NAVIGATION DISC - BELG LUX NETHLNDS

31

1R12-374844-AB

NAV DISC ITL AUS SWT

31

1R12-375829-AA

NAVIGATION DISC SPAIN & PORTUGAL

31

1R12-375830-AA

NAVIGATION DISC SWEDEN & DENMARK

31

1R12-374840-AB

NAVIGATION DISC UNITED KINGDOM

31

1R12-374841-AB

NAVIGATION DISC GERMANY

31

1R12-374842-AB

NAVIGATION DISC FRANCE

31

1R12-374845-AB

NAVIGATION DISC - USA

31

1R12-372710-AC

MOUNTING PANEL - DVD UNIT

31

700226

WASHER PLAIN M6x17

31

699845

WASHER M5x10x1 PLAIN
