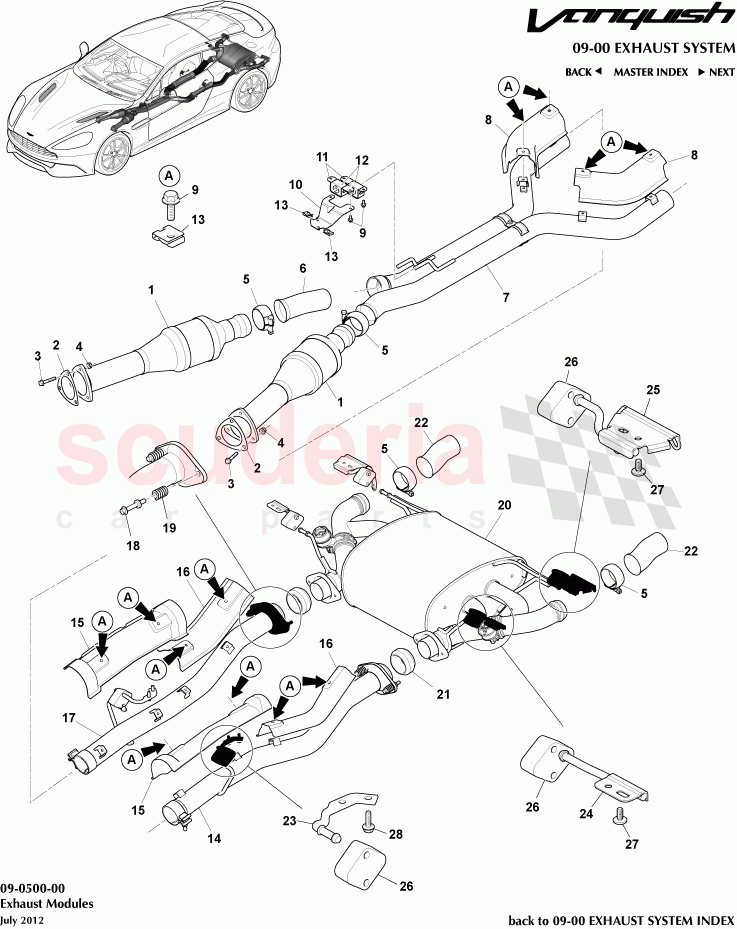

No

Kod

Parça Adı

-

4G43-5N201-EC

Bracket, Exhaust Pipe Mounting, Intermediate RH

-

CD33-5N201-DC

Bracket, Muffler Mounting Hanger Assy, Rear, RH

-

CD33-5N202-AA

Bracket, Upper Tailpipe Mounting, RH

1

8G43-5E211-AD

Catalyst & Pipe Assembly

2

4G43-5E281-AA-PK

Gasket, Exhaust Manifold to Under Floor Catalytic Converter

3

702698

BOLT-M8x45 FLG HEAD H2 TEMP S/S

4

4G43-02738-AA-PK

Nut, M8 Hex Flange Head, Stainless

5

9G43-5221-AA

SPHERICAL CLAMP EXH PIPE

6

CG43-5220-FA

Pipe, Exhaust Intermediate Stub

7

CD33-5220-DC

Pipe, Exhaust Centre

8

AD43-5G221-AA

Shield Assy, Exhaust System, Rear Front

9

HY53-E804349-AA

M6 X 14 SCREW HEX HD

10

4G43-3962-ED

Bracket, Support

11

4G43-3962-FA

Bracket, Exhaust Isolator

12

4G43-35-10025

Rubber, Exhaust Mount

13

699736

Clip, Exhaust Heatshields

14

FD33-5220-BA

INTERMED PIPE

15

4G43-5G221-BC

Heatshield Assy, Exhaust, Intermediate Pipe, Front

16

4G43-5G221-CA

Heatshield Assy, Exhaust, Intermediate Pipe, Rear

17

FD33-5220-AA

INTERMED PIPE

18

4G43-70816-AA

Bolt, M8, Flange Head

19

4G43-5F264-AA

Spring, Exhaust Pipe Flange

20

CD33-5230-BF

Muffler, Exhaust

21

4G43-17213-BA

Sealing Ring, Exhaust

22

4G43-5220-CA

INTERMEDIATE PIPE - EXHAUST

23

4G43-5N201-DC

Bracket, Exhaust Pipe Mounting, Intermediate LH

24

CD33-5N201-CC

Bracket, Muffler Mounting Hanger Assy, Rear, LH

25

CD33-5N203-AA

Bracket, Upper Tailpipe Mounting, LH

26

4G43-35-10026

Isolator, Exhaust Hanger

27

703141

SCREW M8 x 16 CHROME FREE

28

703121

Screw, M8 x 25, Hex Flange Head
