No

Kod

Parça Adı

-

ED33-L31012-ADW

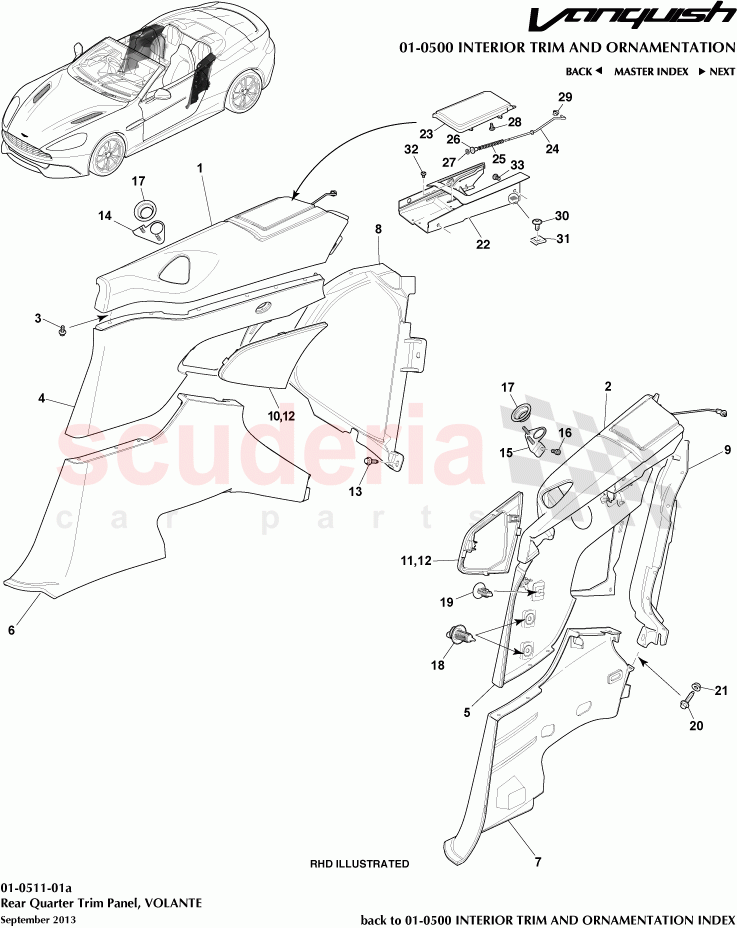

Trim Panel, Rear Quarter Complete, RH

-

ED33-L31013-ADW

Trim Panel, Rear Quarter Complete, LH

-

ED33-L312A94-FA

Grille, Rear Quarter, RH

-

9D33-L312A94-BA

REAR QUARTER SPEAKER RHS BLACK

-

ED33-L312A95-FA

Grille, Rear Quarter, LH

-

9D33-L312A95-BA

REAR QUARTER SPEAKER LHS BLACK

-

4G43-LB605H20-ADW

Frame and Finisher Assembly, C-Flap, RH

-

ED33-LB605H21-AA

Frame and Finisher Assembly, C-Flap, LH

-

4G43-LB605H21-ADW

Frame and Finisher Assembly, C-Flap, LH

-

4G43-539A36-AEW

Flap Assembly, Flip Top, RH

-

ED33-539A37-ABW

Flap Assembly, Flip Top, LH

-

4G43-539A37-AEW

Flap Assembly, Flip Top, LH

-

4G43-L53297-AA

Link Rod, Flap Top LH

1

ED33-L31112-ACW

Trim Panel, Rear Quarter Upper, RH

2

ED33-L31113-ACW

Trim Panel, Rear Quarter Upper, LH

3

W500002-S440

Screw, M5 X 12, Hex Flange Head

4

ED33-L31486-ABW

Panel Assembly, Rear Quarter Middle, RH

5

ED33-L31487-ABW

Panel Assembly, Rear Quarter Middle, LH

6

ED33-L312A06-AAW

Trim Panel, Rear Quarter Lower, RH

7

ED33-L312A07-AAW

Trim Panel, Rear Quarter Lower, LH

8

ED33-L60594-ABW

Panel Assembly, Rear Seat Back, RH

9

ED33-L60595-ABW

Panel Assembly, Rear Seat Back, LH

10

9G43-L312A94-BD

Speaker Grille, Rear Quarter, RH

11

9G43-L312A95-BD

Speaker Grille, Rear Quarter, LH

12

700986-PK

Nut-M4 HEX FLG Pack of 20

13

703026

Screw, M5 x 16, Hex Flange Head

14

ED33-L24858-AB

Bezel Assembly, Front Seat Belt, RH

15

ED33-L24859-AB

Bezel Assembly, Front Seat Belt, LH

16

4G43-V850063-AA

Screw, Cap Hd

17

DD33-61236-AA

Bezel, Seat Belt Gap Hider Moulding

18

4G43-STC3710-BA

Fir Tree, Key Hole

19

701581-PK

FIRTREE-FLAT HEAD PACK OF 20

20

703732

Screw, M5 x 20, Hex Flange Head

21

702295

Nut, M5, Hex Flange Head

22

ED33-LB605H20-AA

Frame and Finisher Assembly, C-Flap, RH

23

ED33-539A36-ABW

Flap Assembly, Flip Top, RH

24

4G43-L53296-AA

Link Rod, Flap Top RH

25

4G43-17431-AA

SPRING

26

4G43-338013-AA

PLUG BLANKING (M6)

27

4G43-103021-AB

Fix, Push On

28

703027

SCREW M4x10 PAN HD TORX S/TAP

29

4G43-1861-AA

CLIP

30

701440

Screw, 4.2 x 9.5, Small Washer Head

31

701653

Spring Nut, U Type, 4.2 x 0.7-2

32

702211

SCREW M5x8.0x0.80 PAN HEAD

33

6G33-46058-AA

Screw, M5 x 10 Pan Head Flange Torx
