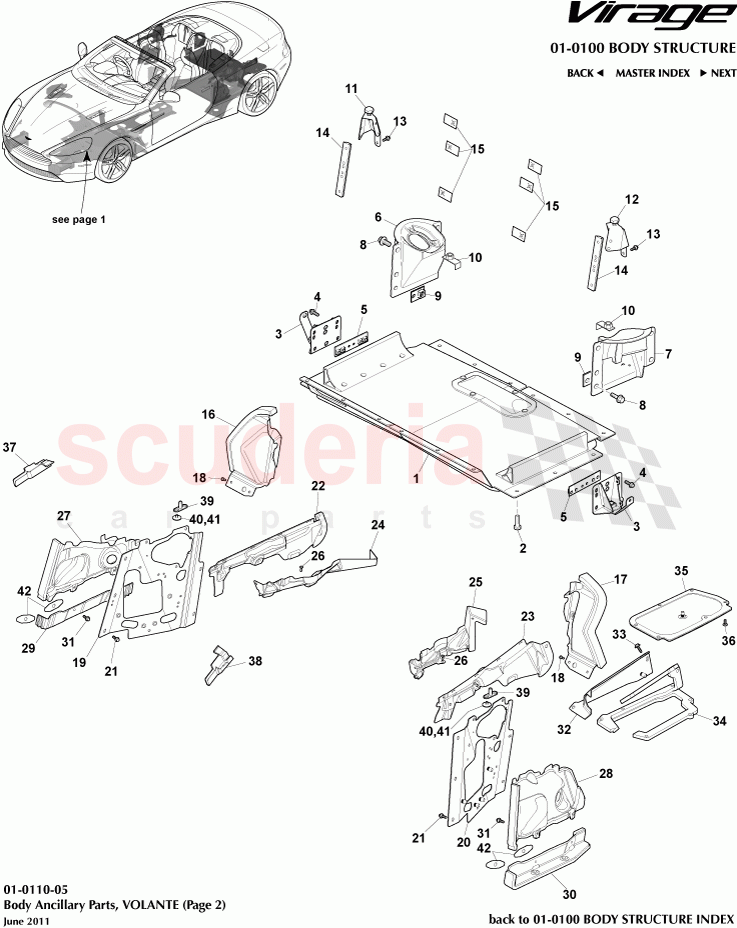

No

Kod

Parça Adı

1

4G4338580AL

Panel, fuel tank compartment, lower

2

703121

Screw, M8 x 25, Hex Flange Head

3

6G33-5D022-AD

BRACKET REAR SUB FRAME STABILISER

4

703120

Screw M8-1.25-90 Hex Skt Hd Shoulder

5

6G33-5N394-AB

Nutplate Bracket, Rear Subframe Stabiliser, Upper

6

6G33-18A000-AD

Member, Rear Shock Absorber Mounting, RH

7

6G33-18A001-AD

Member, Rear Shock Absorber Mounting, LH

8

703185

M12x1.75x25 HEX FLANGE HEX HEAD CHROME FREE

9

6G33-80997-AA

Nutplate, M12, Rear Damper Mounting, Front

10

4G43-501B0-AC

NUT PLATE REAR SUB FRAME REAR M14

11

4G43-4S018-AA

Bracket, Tonneau Cover Bump Stop Mounting, RH

12

4G43-4S017-AA

Bracket, Tonneau Cover Bump Stop Mounting, LH

26

6G33-37949-AA

DIA 4.8 X 13.9 BLIND RIVET

14

4G43-L24556-AB

Nutplate, Pillar Centre Body Inner Rear

15

7G43-2943707-AA

Plate, Weld Nut, Centre

16

9G43-28114-AA

Baffle, Quarter Panel At Wheel, Housing Upper, RH

17

9G43-28115-AA

Baffle, Quarter Panel At Wheel, Housing Upper, LH

18

703704

Stud, M8 x 13.6+16, Hex Head

19

8G43-L04702-GA

PANEL WINDOW REGULATOR OPENING COVER RH

20

8G43-L04703-GA

PANEL WINDOW REGULATOR OPENING COVER LH

31

703203

Screw M6 x 20 Heex Flange 8 Chrome Free

22

4G43-A410K24-AH

Panel, Rear Body Pillar Closing, RH

23

4G43-A410K25-AH

Panel, Rear Body Pillar Closing, LH

24

9G43-5422-AB

Se bearing casting, rear quarter, RH

25

9G43-5423-AB

Se bearing casting, rear quarter, LH

27

9G43-28034-AB

Panel, Rear Quarter Shedder, RH

28

9G43-28035-AB

Panel, Rear Quarter Shedder, LH

29

ED33-303A92-AA

Bracket, Quarter Window Regulator Mounting, RH

30

ED33-303A93-AA

Bracket, Quarter Window Regulator Mounting, LH

32

9G43-507A62-AC

TONNEAU PUMP COVER PLATE LEFT HAND SIDE

33

702839-PK

Screw & Washer M6x20 HEX HD Pack of 20

34

9G43-P8K141-AB

Gasket, Tonneau Pump Closing Panel

35

9G43-507A63-AB

Closing plate assy, pump

36

703149

SCREW M6x16 PAN FLG TORX CHROME FRE

37

4G43-L025C50-AB

Trough, Front Body Pillar Upper, RH

38

4G43-L025C51-AB

Trough, Front Body Pillar Upper, LH

39

4G43-L243A70-AA

Alignment Pin, Main Bearing Bracket

40

FD43-E830667-AA-PK

Washer 25mm x 6.4mm-10

41

703266

Screw, M6 x 10, Pan Head Torx Type

42

4G43-14A573-AA

Plate Assembly, Window Regulator Rear Switch Cover
